Starting in 2006, Highway 401 will undergo reconstruction and widening from 1.0km west of Highway 402 to 1.0km east of Wellington Road in London.  This construction project involves the reconfiguration of the Wellington Road interchange, including structure replacement, and lane widening from four to six lanes from Highway 402 easterly to the  existing six-lane section east of Wellington Road.  This construction project is expected to take up to two years to complete.

Pre-Construction Photos:

Photos Taken November 4th, 2005

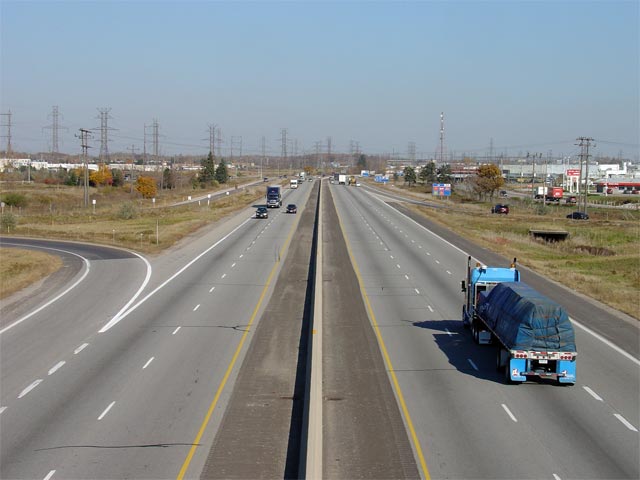

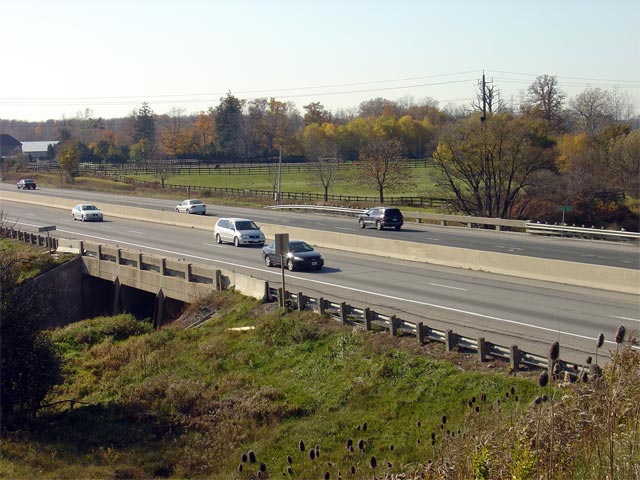

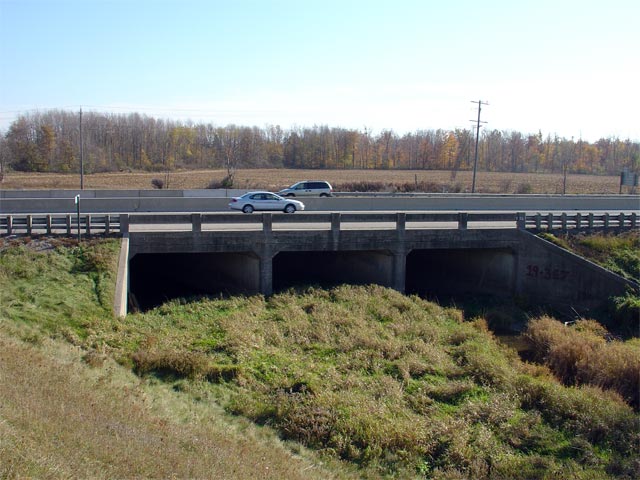

View looking east from the White Oak Road overpass in advance of construction The northern side of the Dingman Creek box culvert.  Note the vintage railings very typical of 1950s highways. This view looks at the southern side of the Dingman Creek culvert The Highway 402 interchange as seen from Dingman Drive.  The eastbound ramp to the 402 will be widened to two lanes as part of the highway construction.

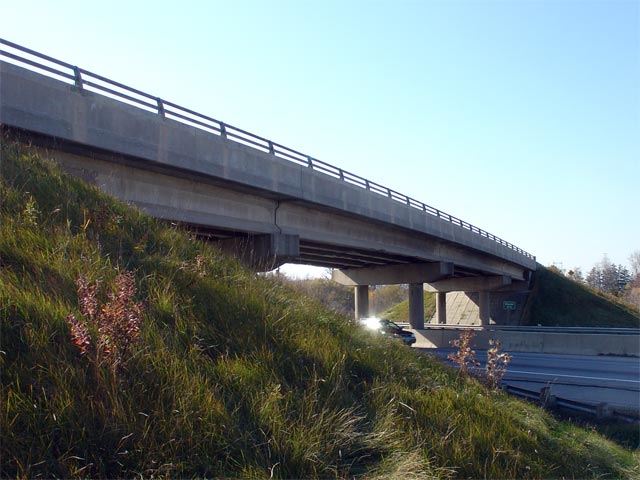

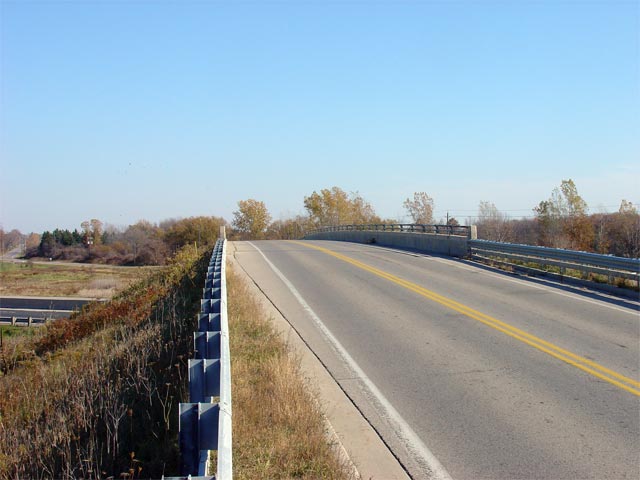

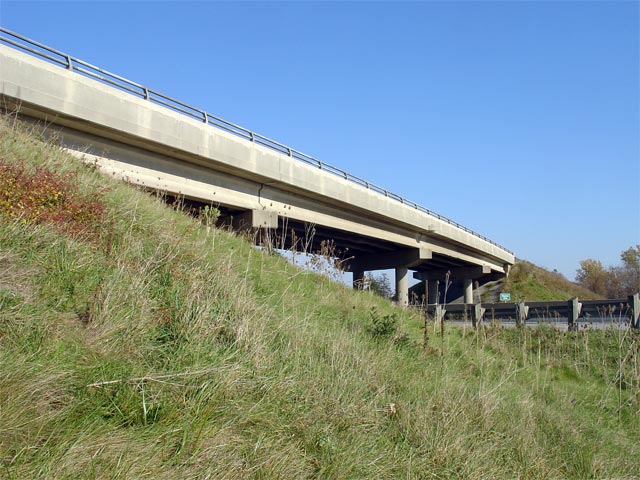

Western side of the Dingman Drive overpass.  This structure was completed in 1968. Looking easterly across the Dingman Drive overpass.  Only minor work will be completed on this overpass during this project. Eastern side of the Dingman Drive overpass.  Dingman Drive is very typical of structures construction during the late 1960s and early 1970s. View looking easterly towards the Wellington Road interchange form Dingman Drive.

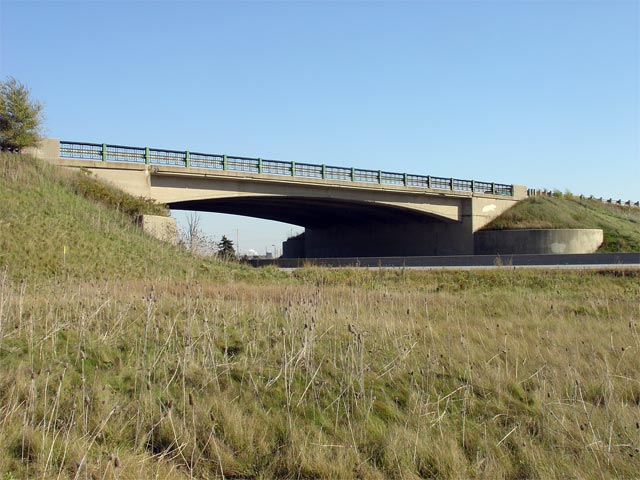

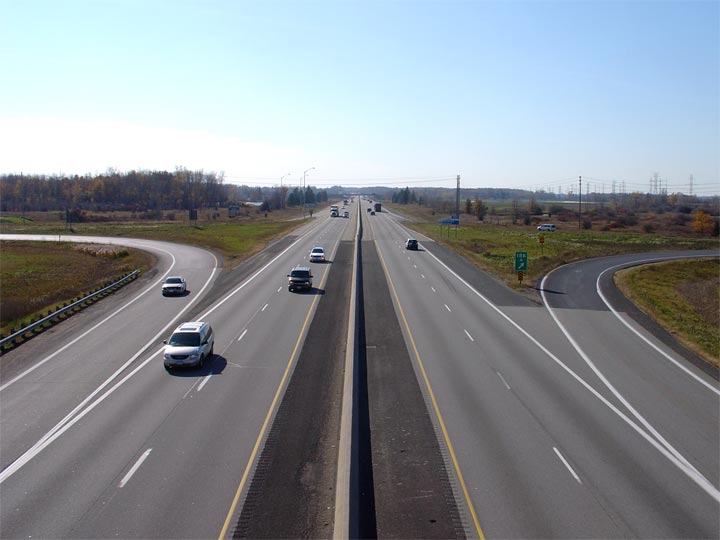

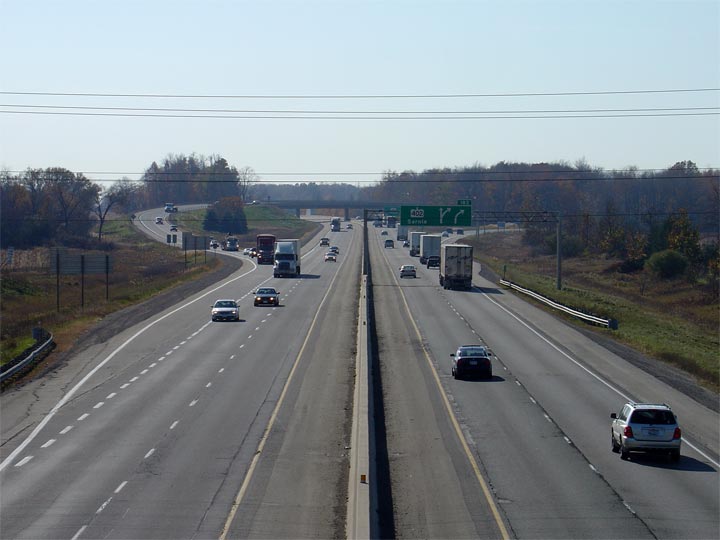

View looking easterly along Highway 401 from the Wellington Road overpass.  Before reconstruction Wellington Road met Highway 401 at a three-quarter cloverleaf interchange. Western side of the 1950s vintage Wellington Road overpass.  This was one of the larger and more notable overpasses on the Woodstock to London segment of Highway 401 View looking easterly from the Wellington Road overpass.  Note the long sub collector lane linking the Exeter and Wellington Road North ramps. View looking westerly through the Wellington Road overpass

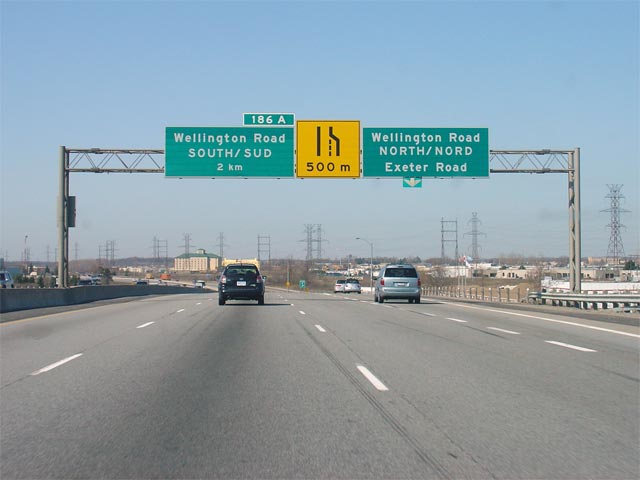

View looking southerly along Wellington Road towards St. Thomas Looking northerly into London from overtop of Highway 401 View looking south along Wellington Road from just south of Exeter Road to the Highway 401 interchange Overhead guide signage in advance of the Wellington Road and Exeter Road interchanges.
Photo taken: April 10th, 2005.



Photos taken during construction:


Photos Taken September 29-30, 2006

Low-res     High-res

Low-res     High-res

Low-res     High-res

Low-res     High-res

View looking easterly from the White Oak Road overpass.  Note the end of the construction site, where the westbound third lane ends. View looking westerly from the Dingman overpass towards the Dingman Creek Box Culvert.  This culvert is being extended as part of the construction. A centreline view of the Dingman Creek culvert with the Highway 402 interchange in the background View looking east from the Dingman Road overpass.

Low-res     High-res

Low-res     High-res

Low-res     High-res

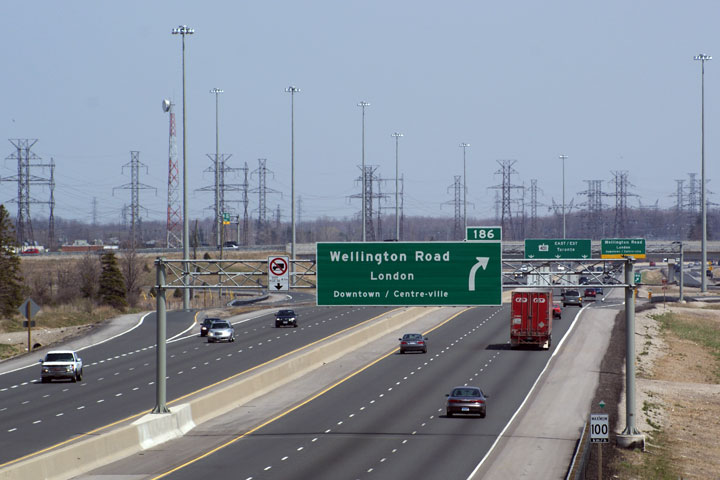

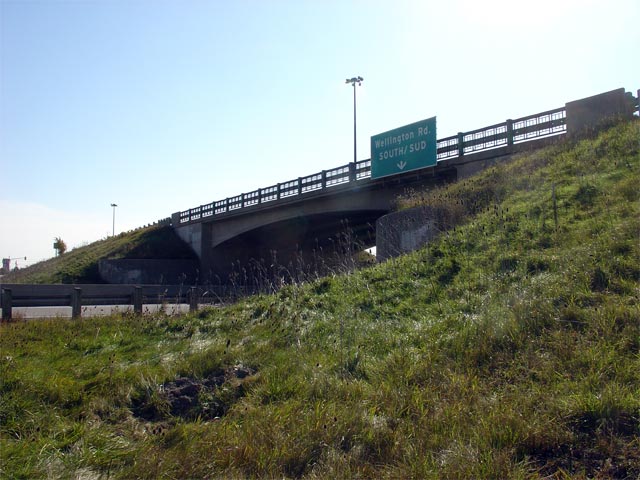

Looking west from Wellington Road.  The westbound to southbound loop ramp was removed quickly during construction. View looking easterly from the Wellington Road overpass along Highway 401.  The former westbound ramps have been obliterated. View of the graded ramps located in the northeast quadrant of the Wellington/401 interchange. Downed overhead sign for Wellington Road South.  This sign was formerly affixed to the Wellington Road overpass.


Low-res     High-res

Low-res     High-res


  Looking northerly into London along Wellington Road View looking south from just south of Exeter Road to the Highway 401 interchange



Photos Taken August 8th, 2007

Low-res     High-res

Low-res     High-res

Low-res     High-res

Low-res     High-res

View looking westerly towards the Highway 402 interchange A broader view of the photo to the left showing the construction at the Dingman Creek culvert. View of the northern side of the Dingman Creek culvert View looking westerly towards the Wellington Road interchange from the Dingman Road overpass.

Low-res     High-res

Low-res     High-res

Low-res     High-res

Low-res     High-res

View looking westerly from the Wellington Road overpass.  Little has changed from this perspective since September 2006. A more zoomed in perspective from Wellington Road A view looking easterly from Wellington Road.  Note the progress of the new westbound off-ramp. Looking northerly across the deck of the future Wellington Road overpass.

Low-res     High-res

Low-res     High-res

Low-res     High-res

Low-res     High-res

View of the now abandoned eastbound off-ramp to Wellington Road.  A new eastbound off-ramp was constructed a short distance south of this one. Looking west towards Highway 401 from the now abandoned off-ramp. Broad perspective of the Wellington Road overpass with the southbound to eastbound loop ramp in the foreground. A close-up perspective of the 1950s vintage overpass.  Notice the new structure's central piers located behind the current structure.

Low-res     High-res

Low-res     High-res

Low-res     High-res

Low-res     High-res

Construction signage located northbound along Wellington Road advising of ramp closures to Highway 401 because of the construction View looking northerly towards the Wellington Road overpass.  Notice the signage treatment advising motorists of the upcoming closure. Looking southerly along Wellington Road towards Highway 401. View looking westerly towards the new (2007) Wellington Road overpass from near the Exeter Road ramp.
