Toronto Construction Images


This page includes photos from various construction projects that take place to reconstruct and rehabilitate existing sections of Highway 401 through Toronto and area.

Contract #2001-0015 Highway 401 Eastbound Express Rehabilitation - Jane Street to Kipling Avenue
Photos Taken July 31st, 2013


(720x480)     (1440x960)


(720x480)     (1440x960)


(720x480)     (1440x960)


(720x480)     (1440x960)

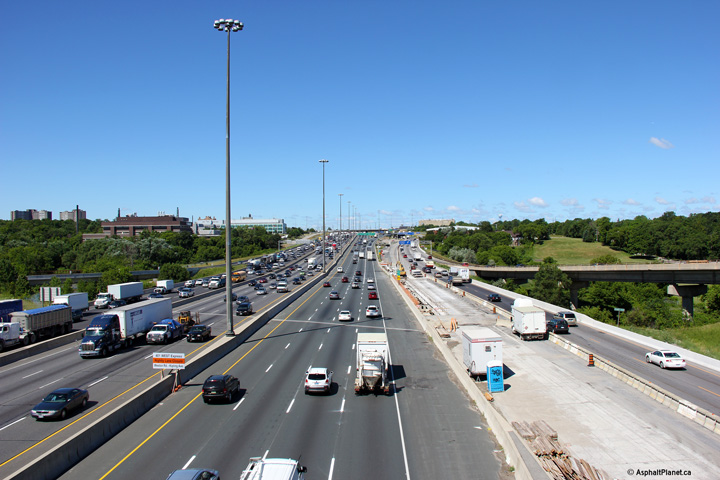

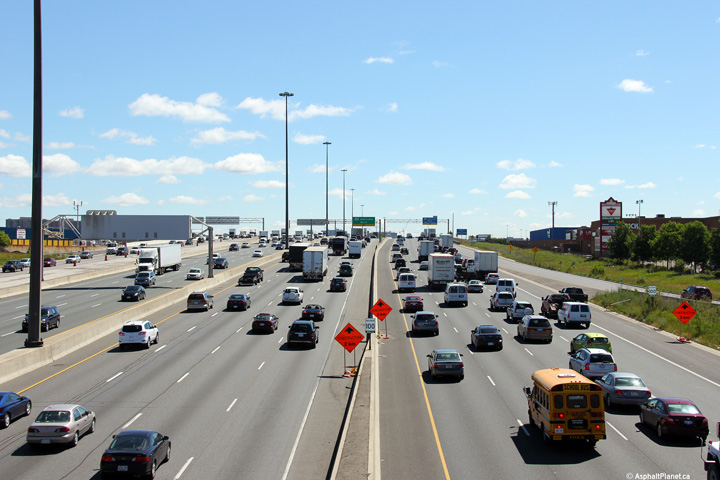

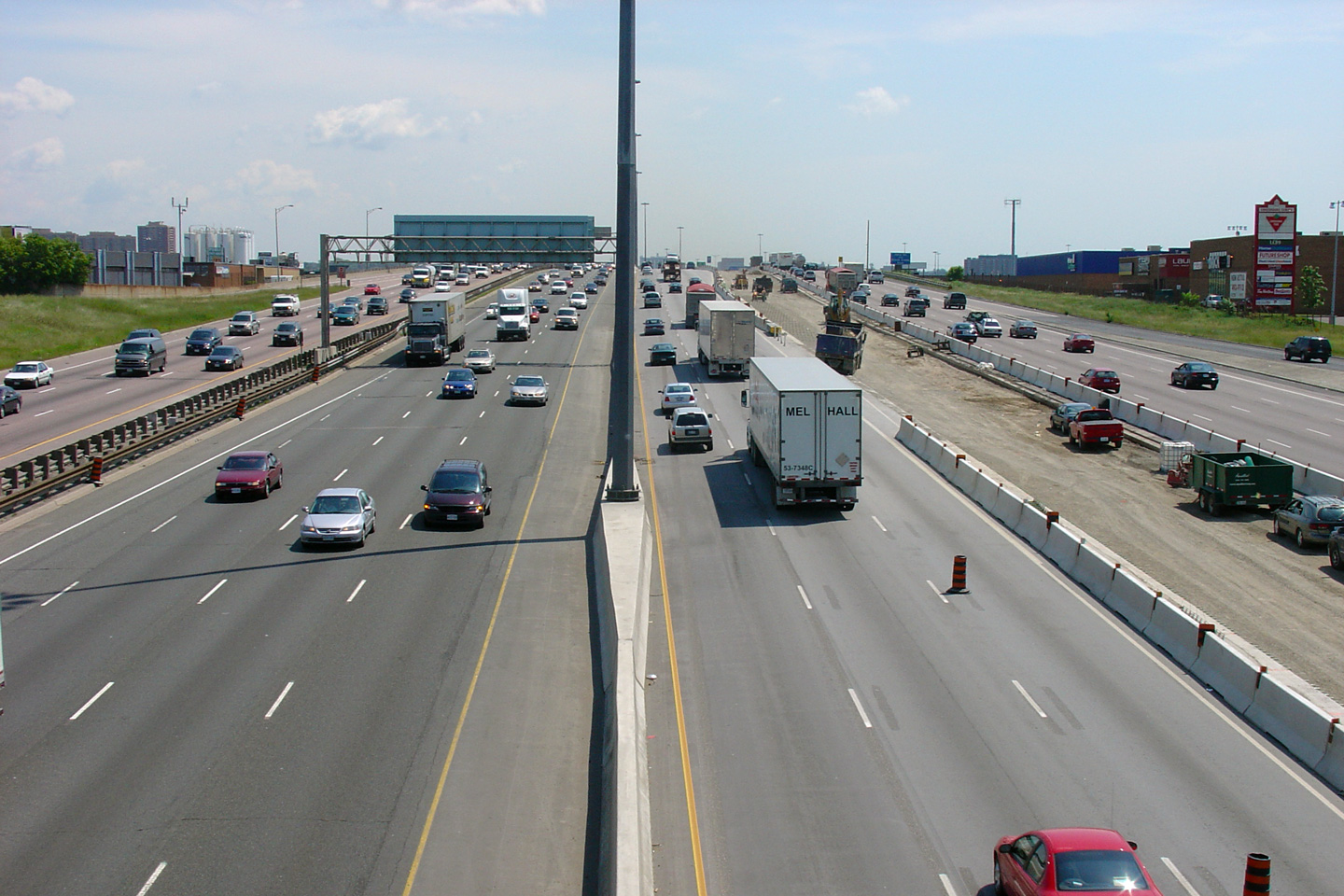

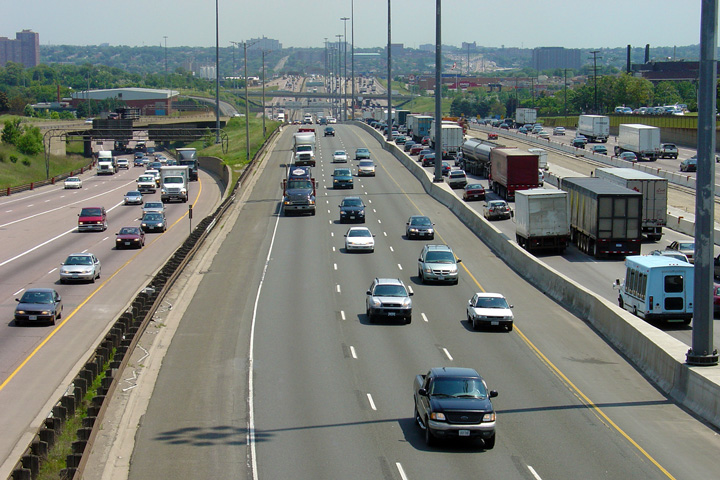

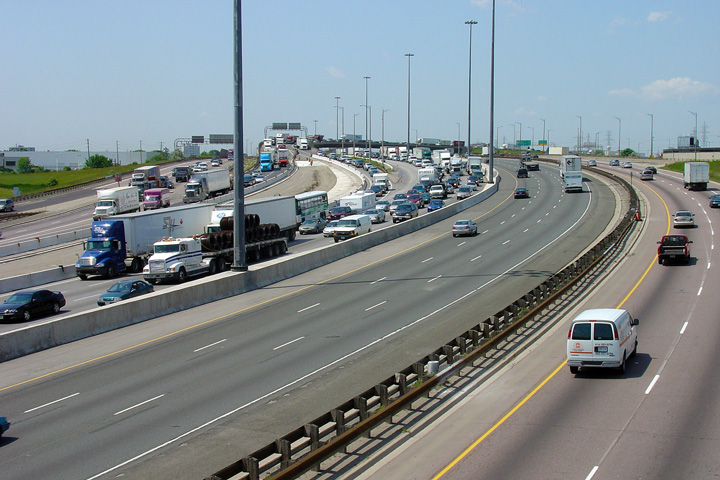

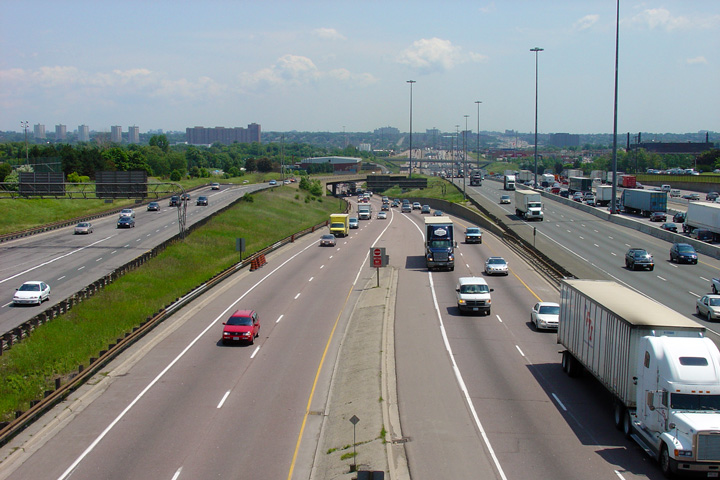

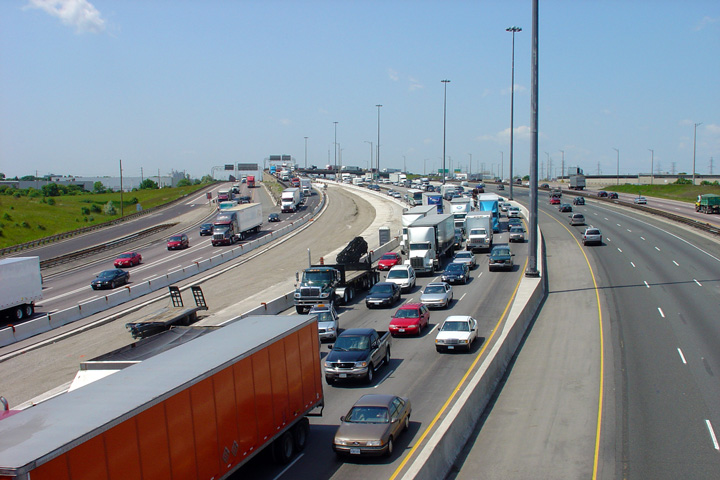

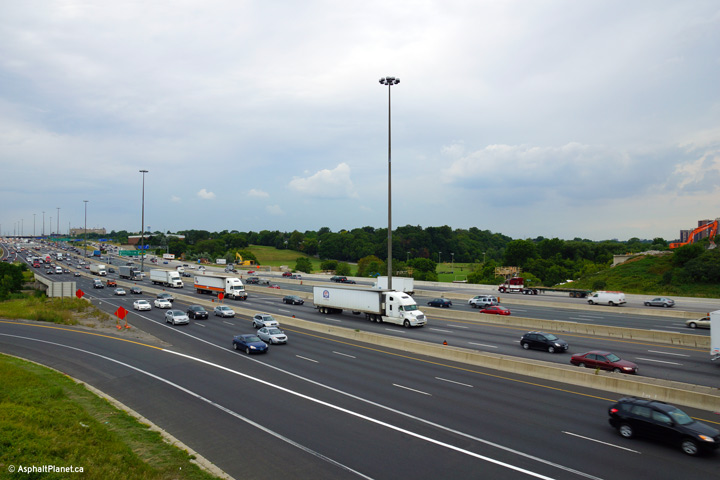

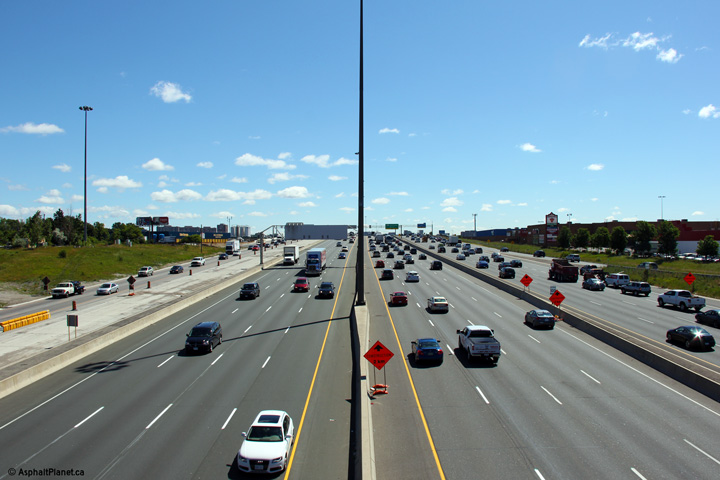

Westerly view from the Kipling Avenue overpass. Easterly view from the Kipling Avenue overpass towards the Highway 409 flyover.  The central median looks like it has been designed to accommodate an additional westbound lane Westerly view from the Islington Avenue overpass, focused over the eastbound lanes of Highway 401.  The former steel barrier separating the core and collector lanes had been removed during construction. Westerly view from the Islington Avenue overpass overtop of the westbound lanes of the 401.

(720x480)     (1440x960)


(720x480)     (1440x960)


(720x480)     (1440x960)


(720x480)     (1440x960)

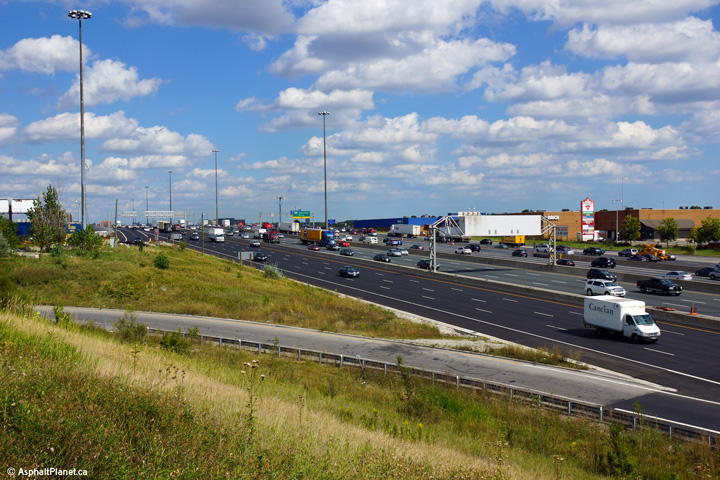

An additional westbound view from Islington Avenue.  The ramp in the foreground of the photo carries traffic to Highway 409. Easterly view from the Islington Avenue overpass overtop of the westbound express lanes. Easterly view from the Islington Avenue overpass overtop of the westbound collector lanes. Westerly view from the centre of the Weston Road overpass.  Construction crews were working to replace the eastbound express Humber River bridge, as well as extend the concrete base for an additional eastbound express lane.



(720x480)     (1440x960)

(720x480)     (1440x960)



Westerly view overtop of the westbound lanes from the Weston Road overpass.  When this photo was taken, no substantial modifications had taken place along the westbound lanes since the highway was 12-laned during the 1960s Easterly view from overtop of the Weston Road overpass.



Contract #2009-2020 Highway 401 Westbound Collector Rehabilitation - Jane Street to Kipling Avenue
Photos Taken June 25th, 2012

(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)

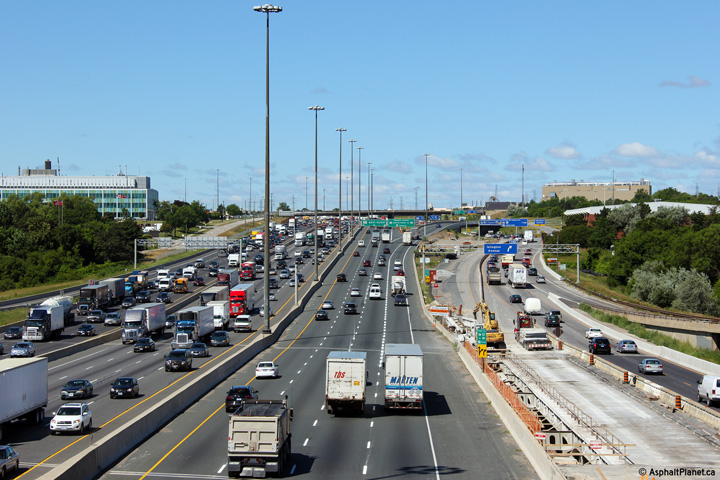

Easterly view from the Weston Road overpass.  Work to repair the westbound collector lanes was ongoing when this photo was taken. Easterly view overtop of the eastbound lanes from Weston Road. Westerly view from the Weston Road overpass.  The left-side of the westbound collector lanes were being reconstructed when this photo was taken. Close up view of the Humber River bridge from the Weston Road overpass.  Crews had begun to remove the old steel supports.

Photos Taken July 31st, 2013


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)

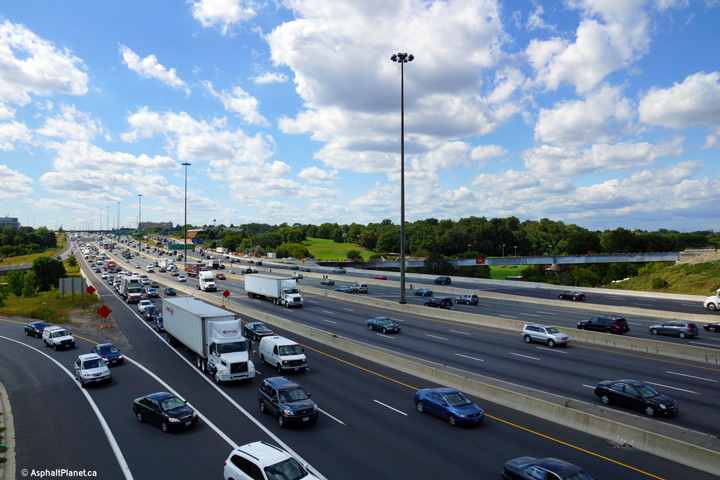

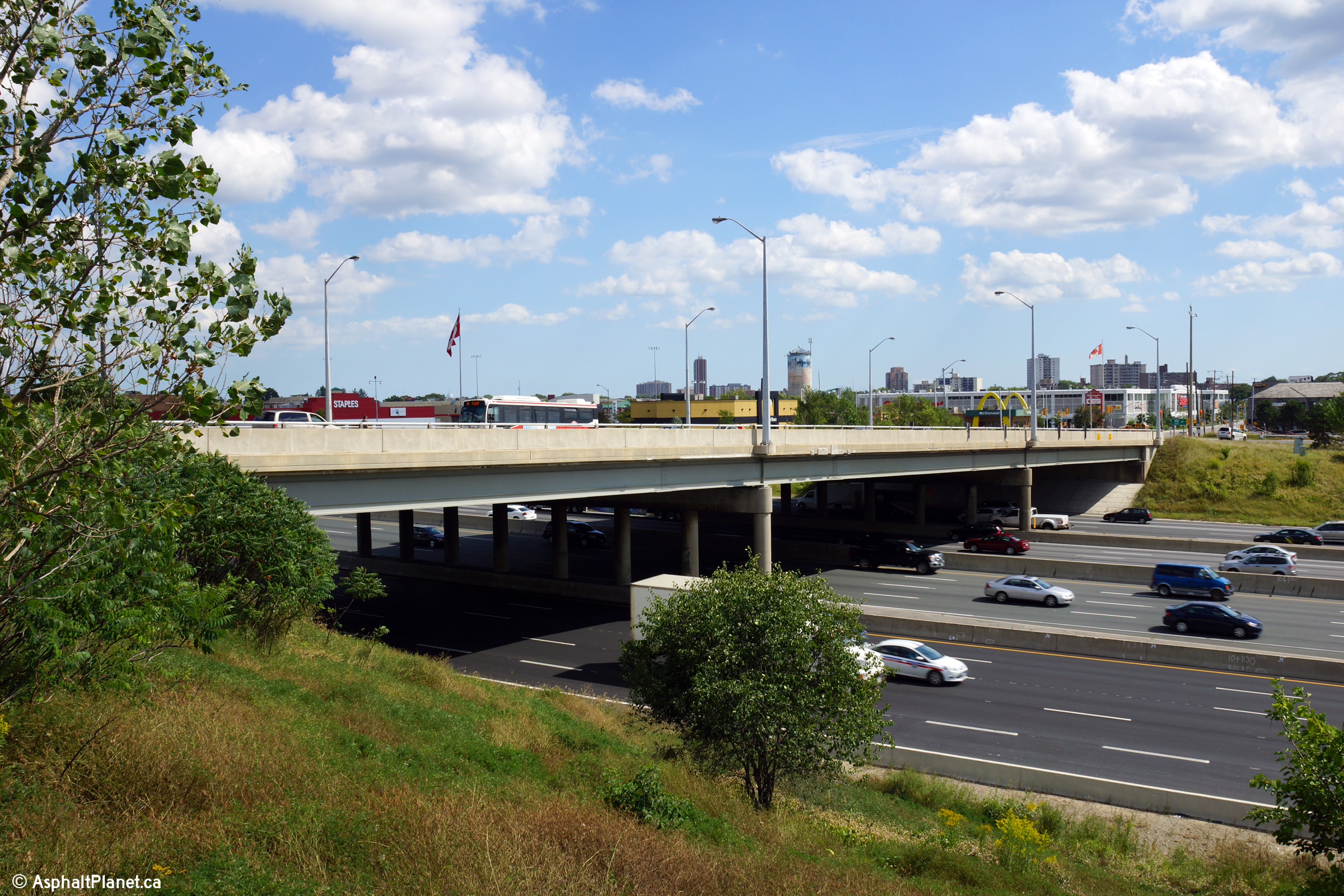

Easterly view from the Weston Road overpass. Westerly view from the Weston Road overpass.  The structure carrying the southbound to westbound on-ramp from Weston Road was completely replaced during this construction.  View looking northwesterly across the highway from the Weston Road overpass. Looking easterly towards the Weston Road overpass.



(720x480)     (1440x960)


(720x480)     (1440x960)

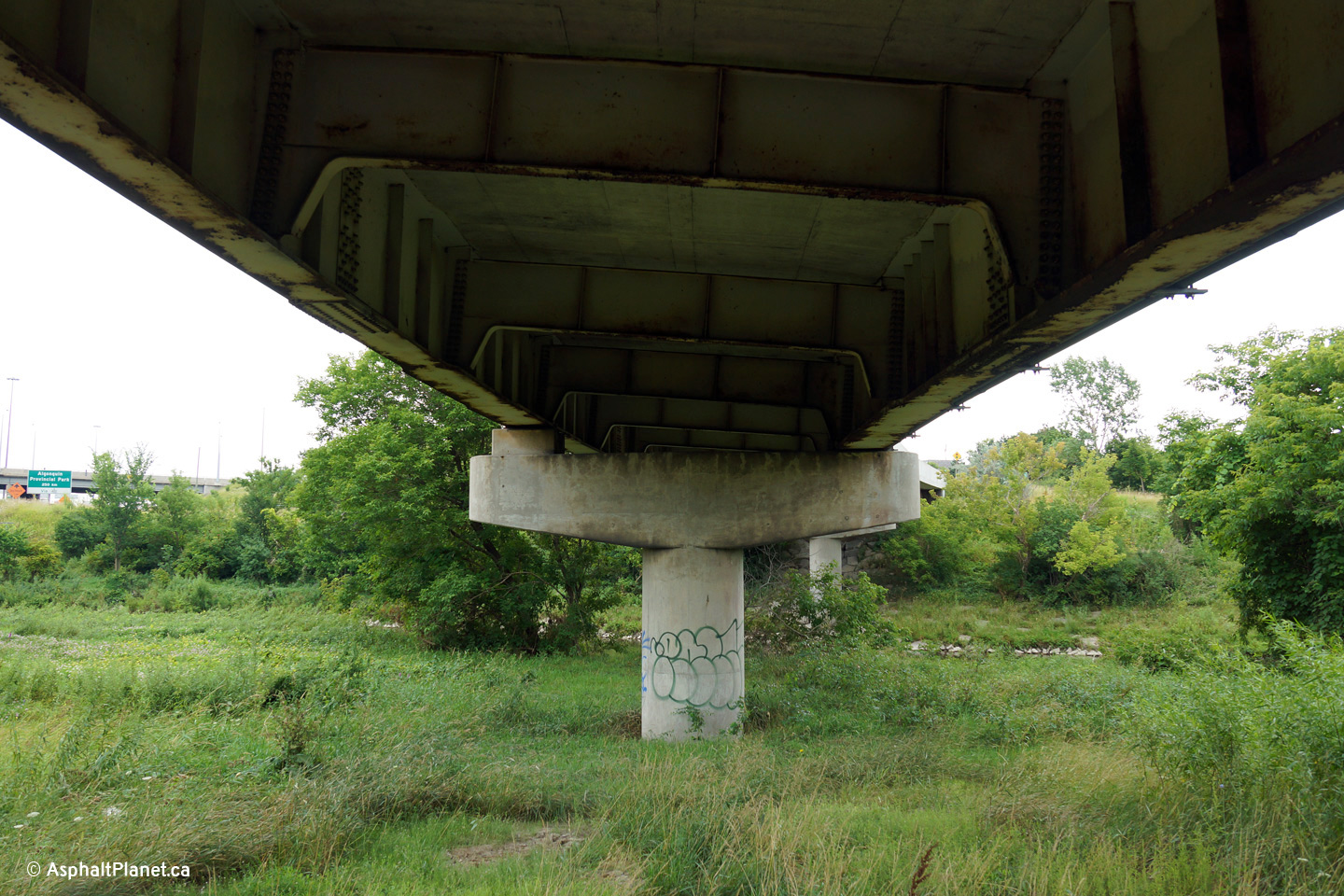

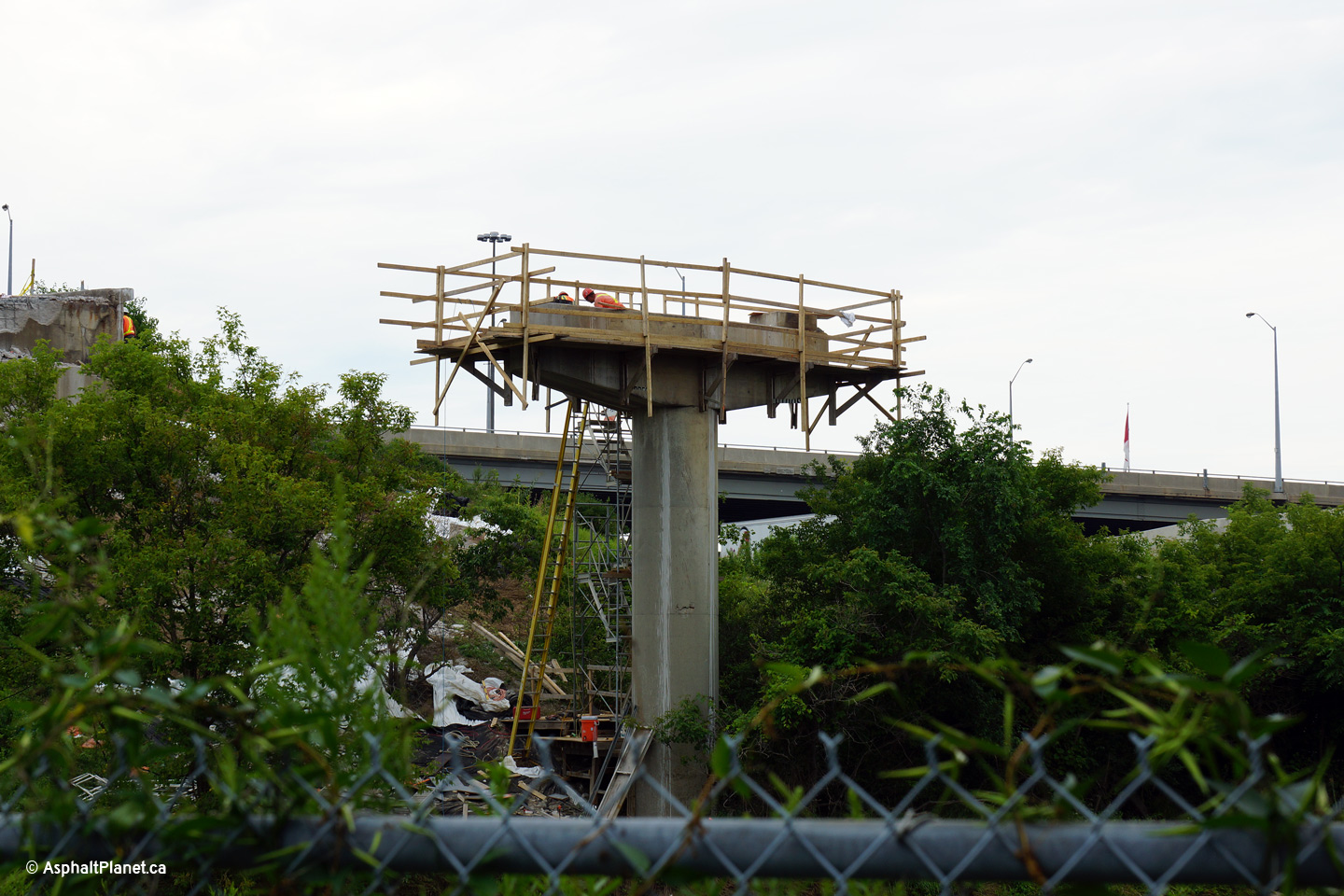

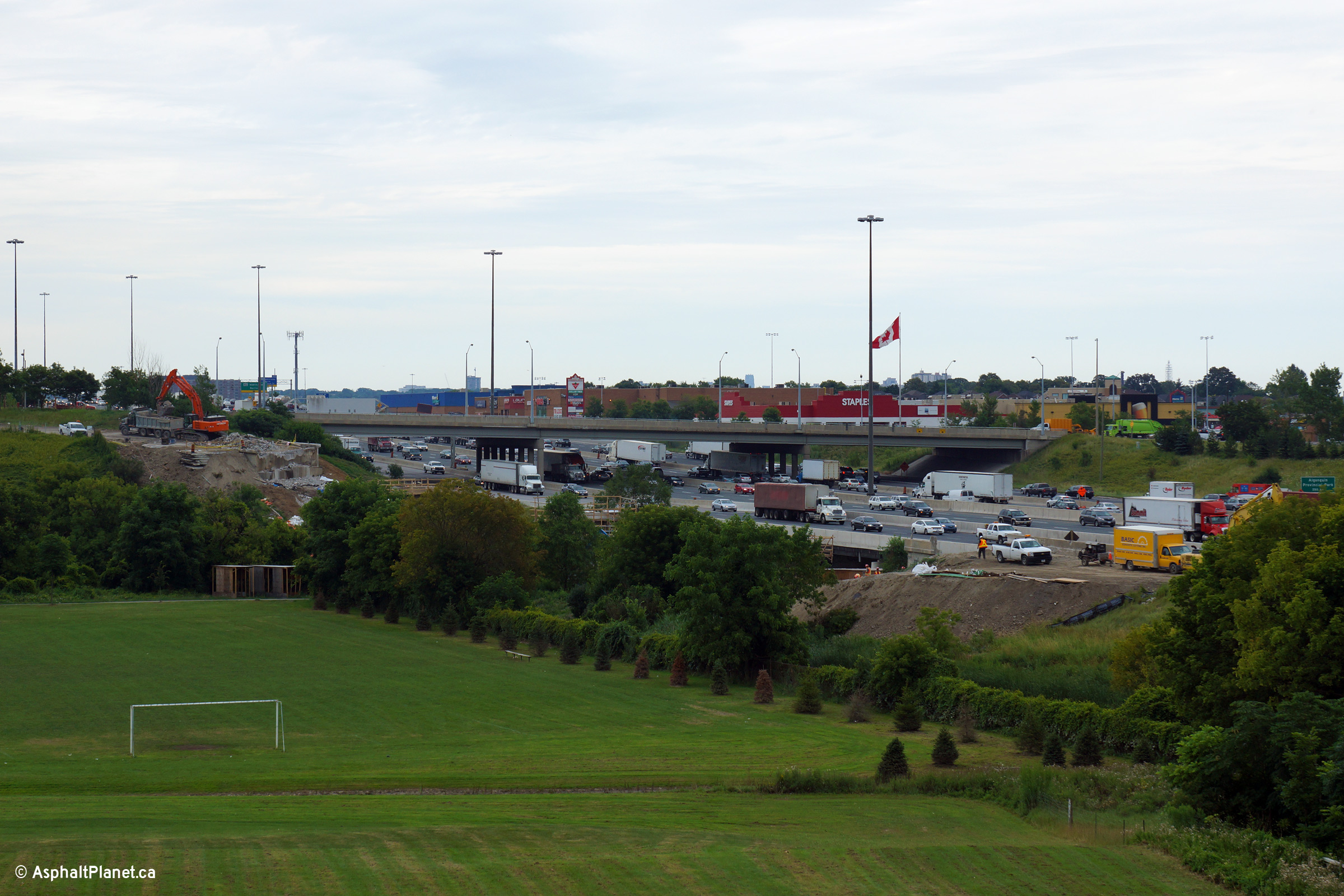

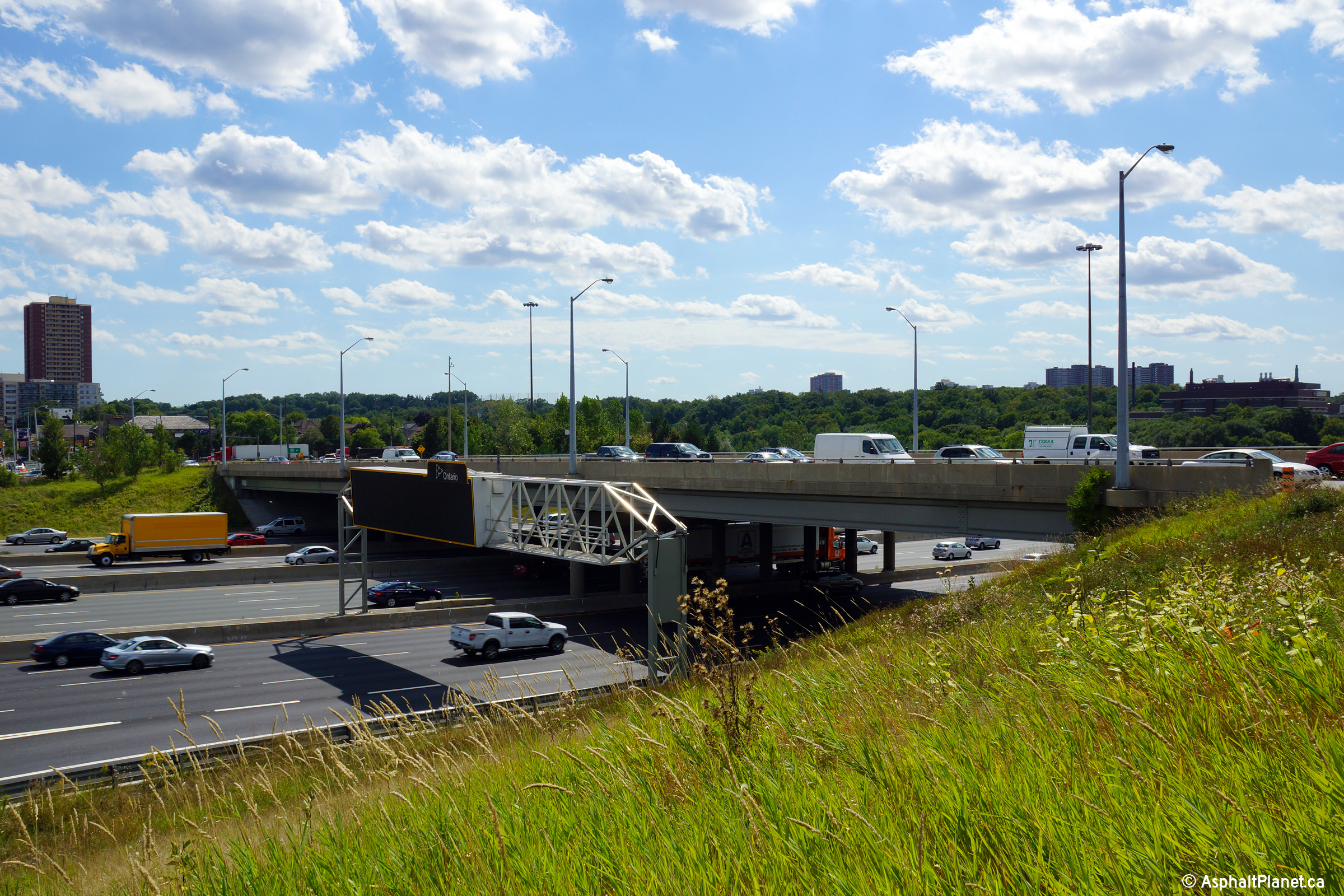

View underneath the eastbound off-ramp to Weston Road.  This was the only structure over the Humber River that was not fully replaced during the multiyear reconstruction of the 401. Modifications are required to the exiting pier caps for the Humber River structure to support new structural steel.

Photos Taken August 24th, 2013


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

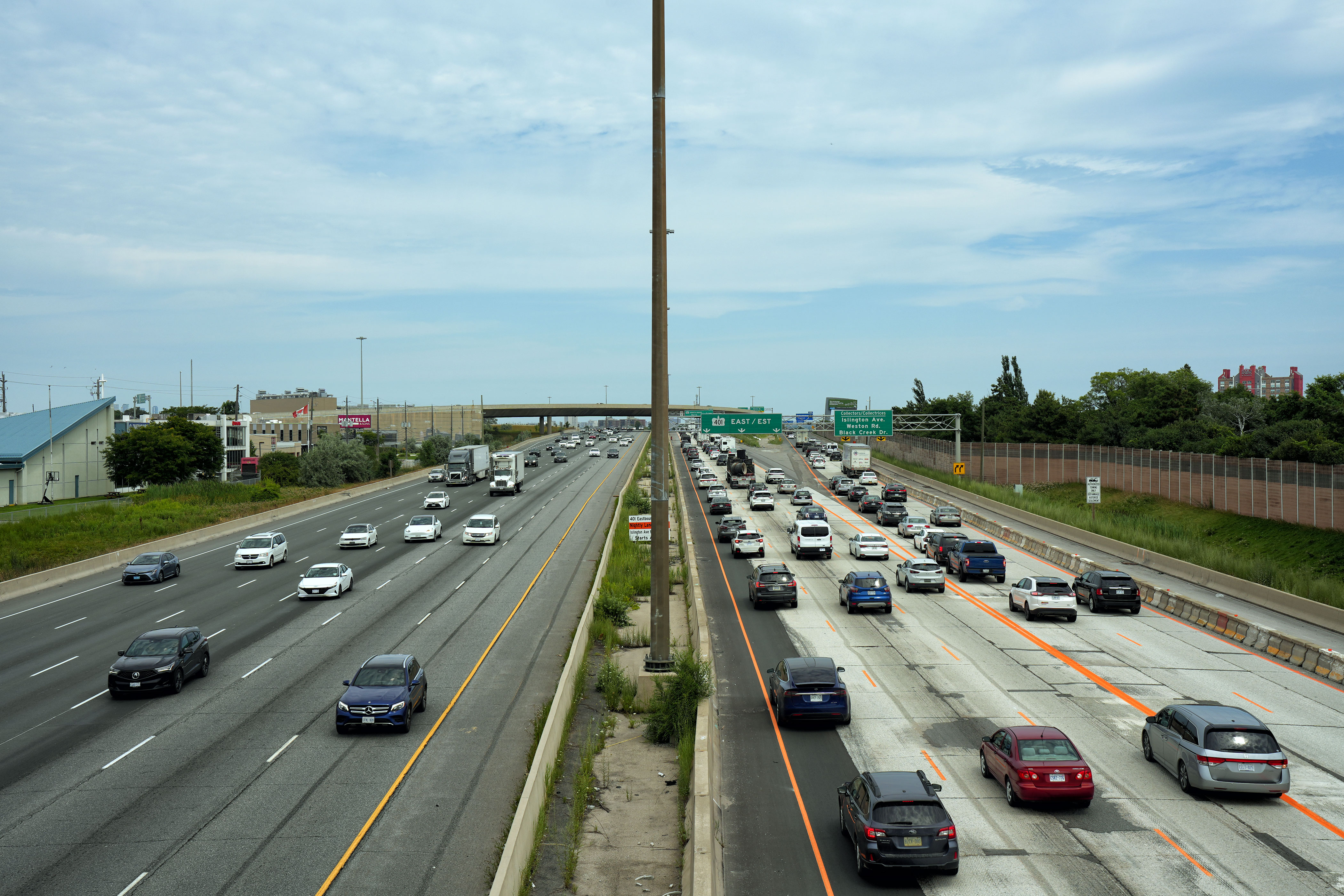

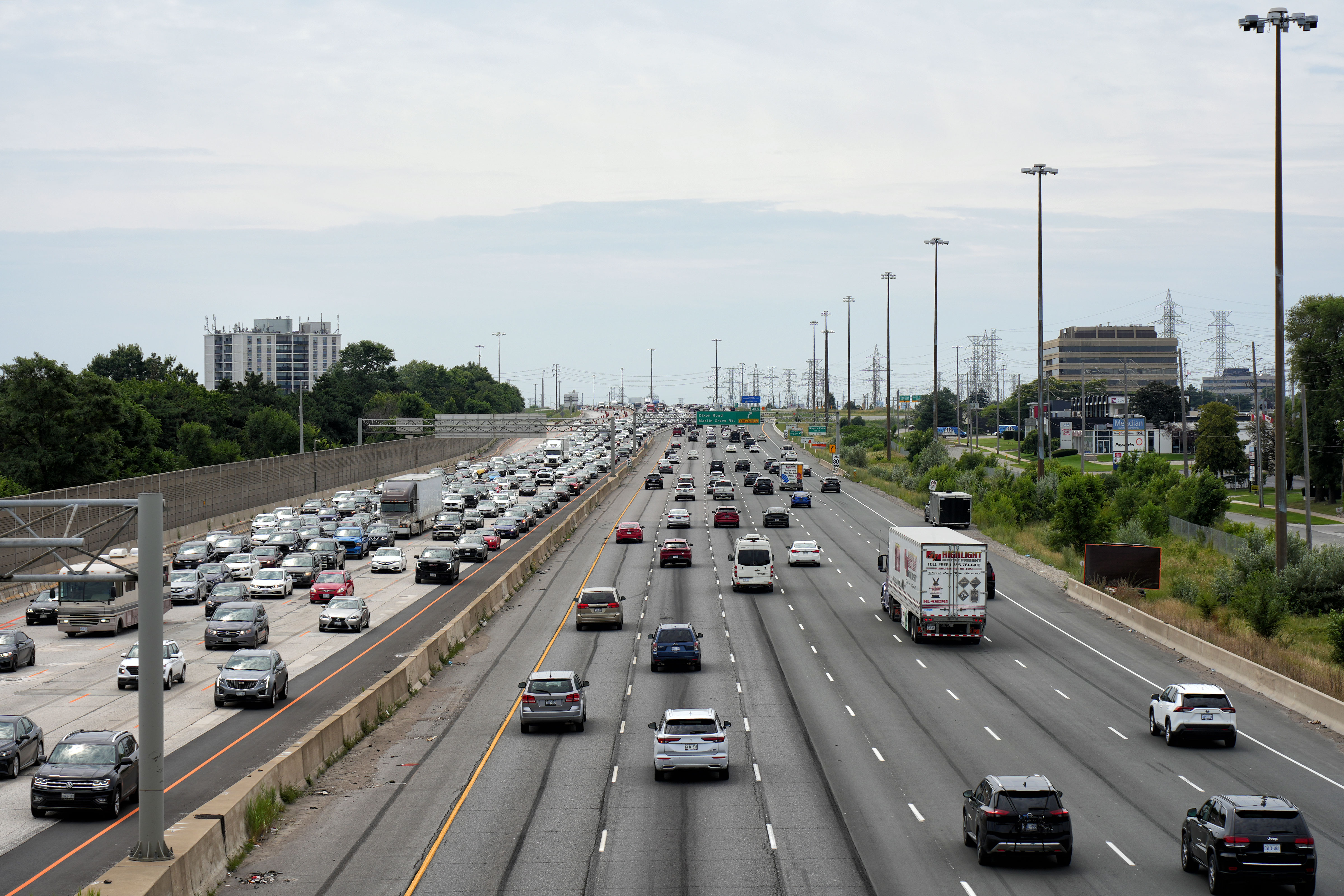

Easterly view from the centre of the Weston Road overpass. A similar view looking east.  The westbound collector lanes had been top coated when this photo was taken. Westerly view looking towards the eastern side of the Weston Road overpass. Southerly deck view of the Weston Road overpass.


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

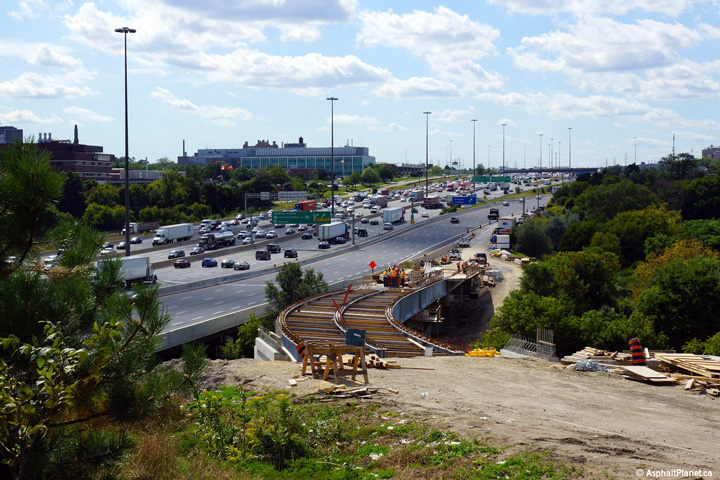

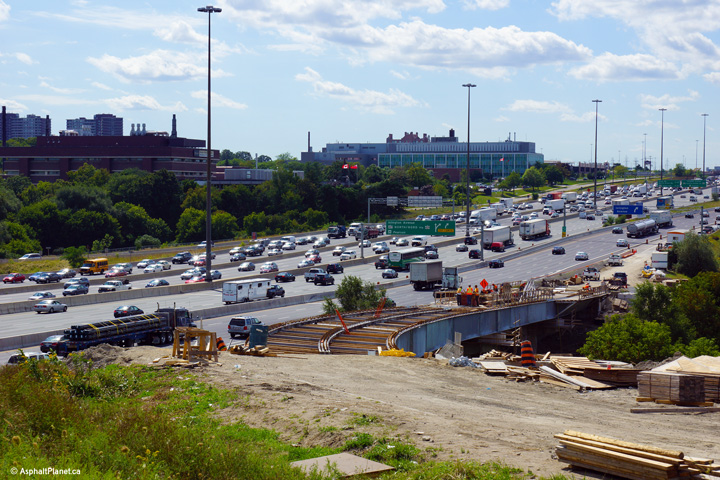

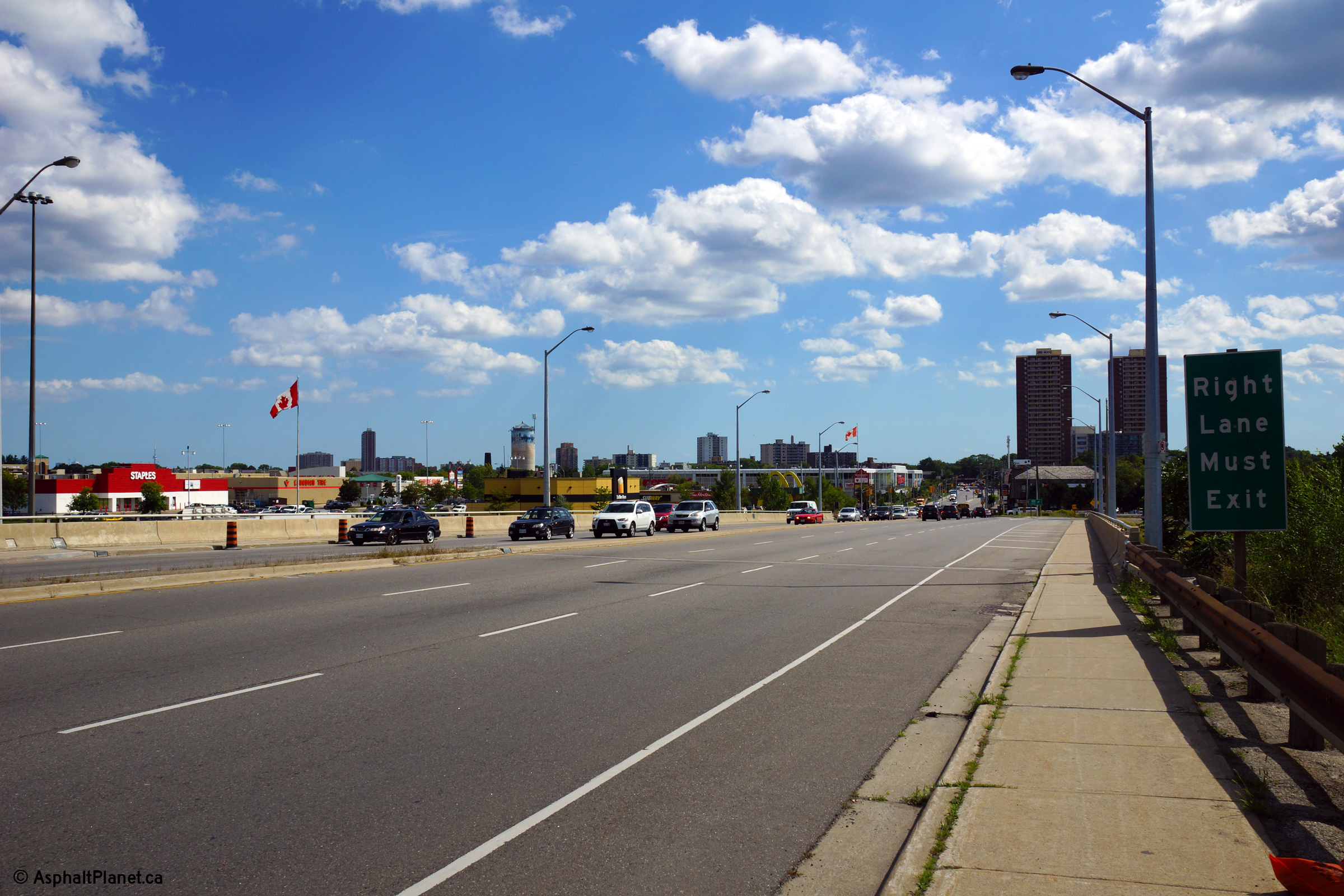

View looking easterly towards the Weston Road structure. The deck of the structure carrying the ramp from Weston Road South to Highway 401 West was completely replaced during this contract. A similar view of the under construction Weston Road structure.  The structural steel was placed shortly before this photo was taken. View looking westerly overtop of the westbound lanes of Highway 401.


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

Centred view from the Weston Road overpass. Additional view from the Weston Road overpass.  As is evident from the photo, incoming traffic from the Weston Road interchange conflicts with queued traffic exiting for Highway 400.






Contract #2013-2008 Highway 401/404/DVP Interchange - Structural Rehabilitation

Photos Taken October 18, 2013


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

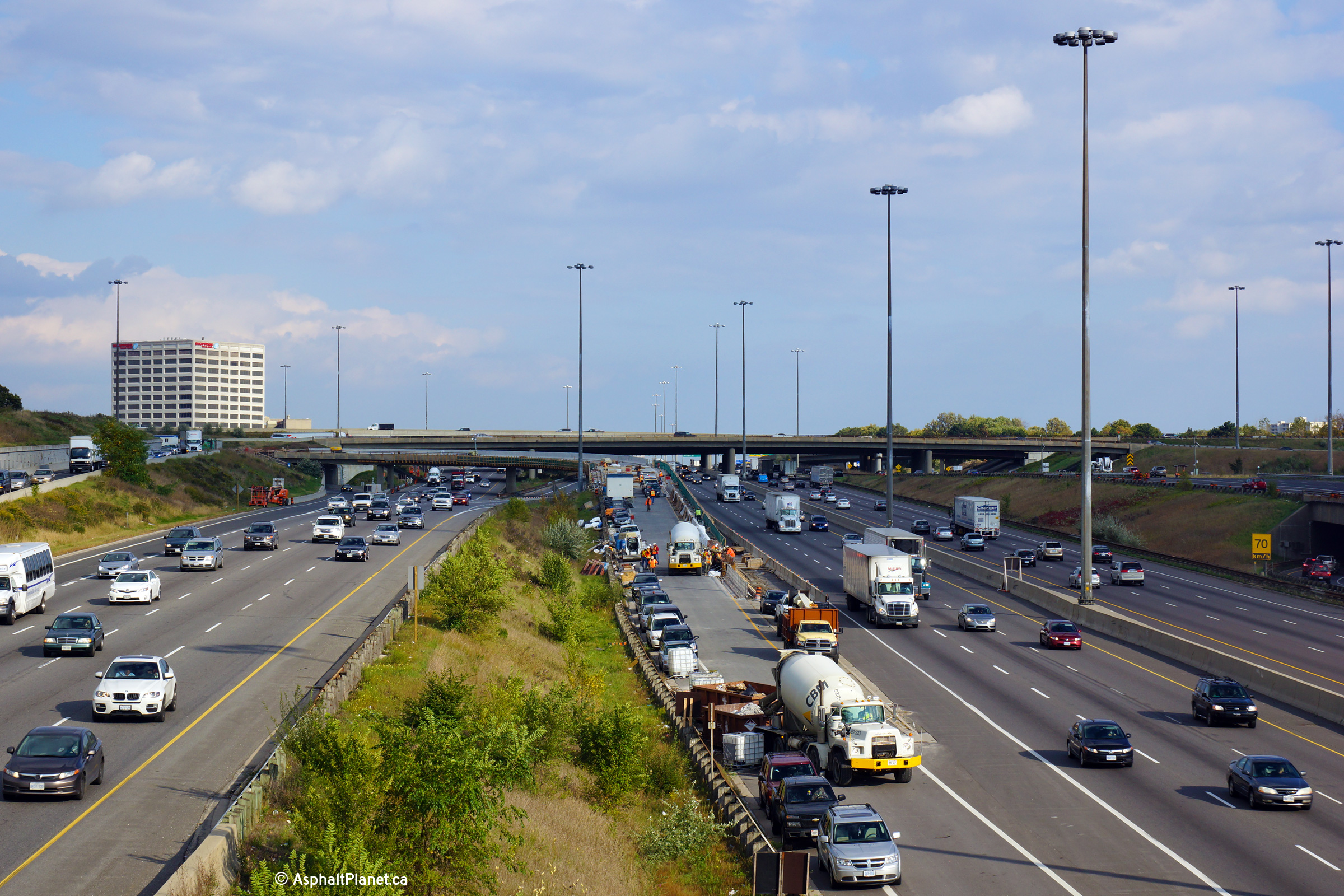

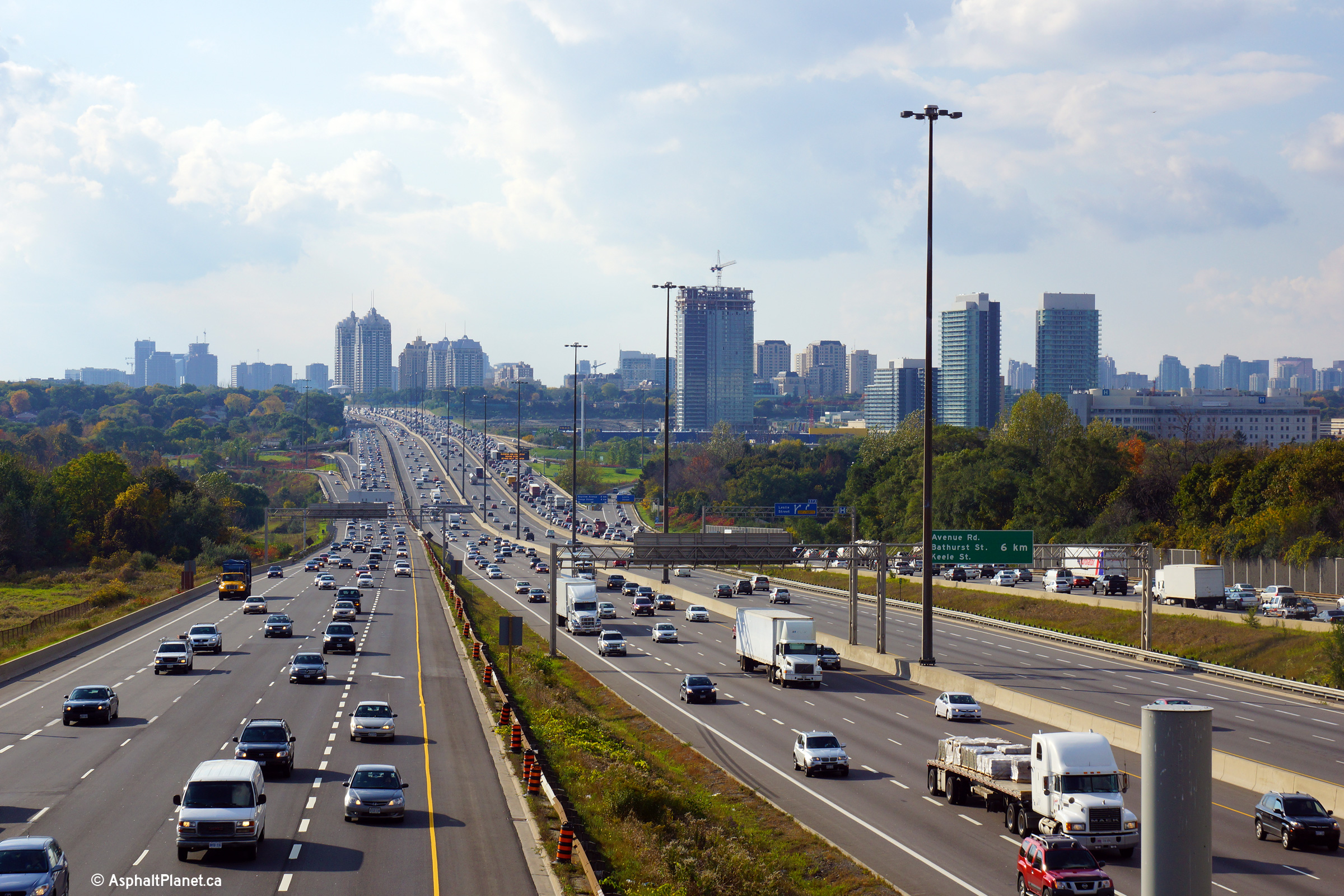

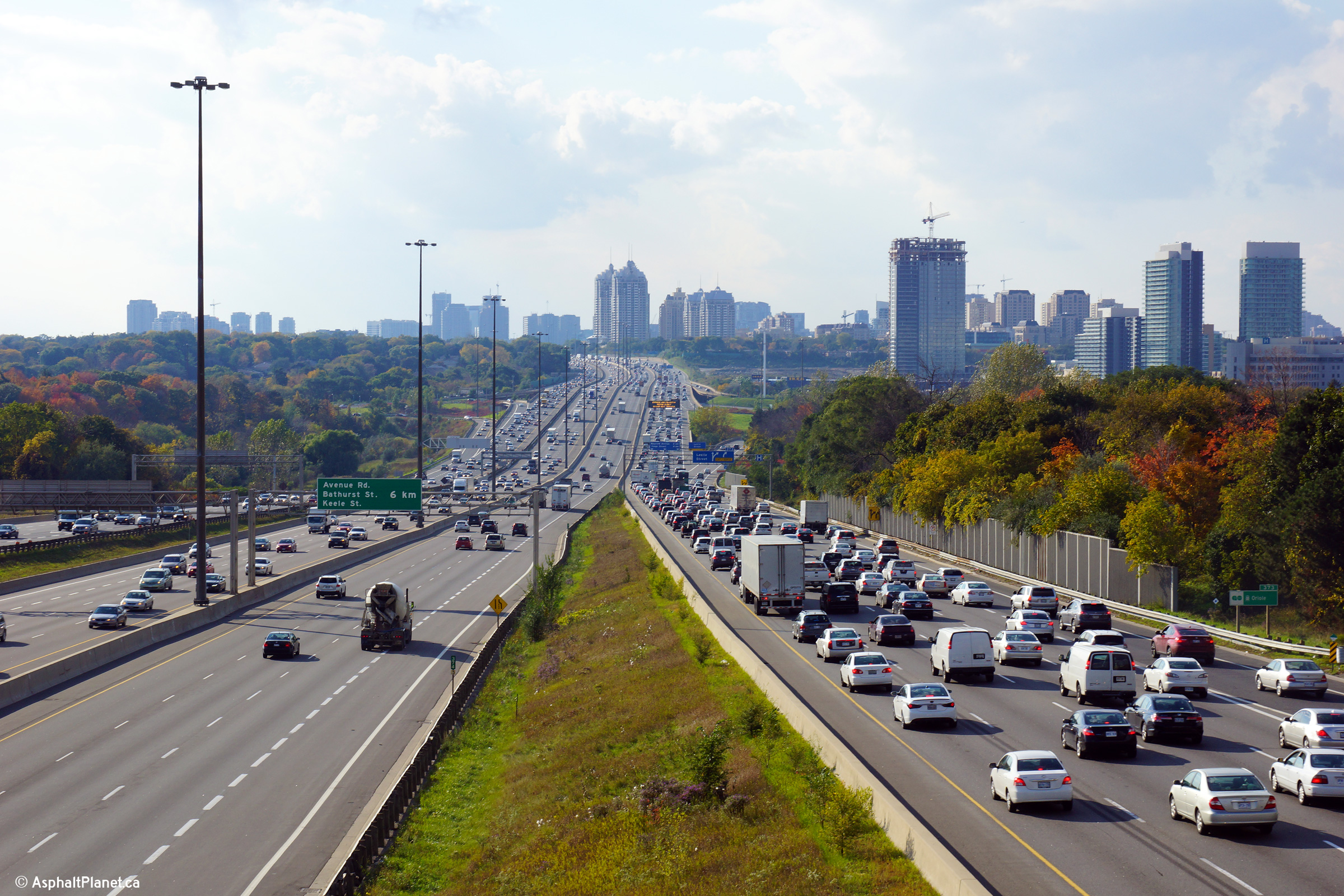

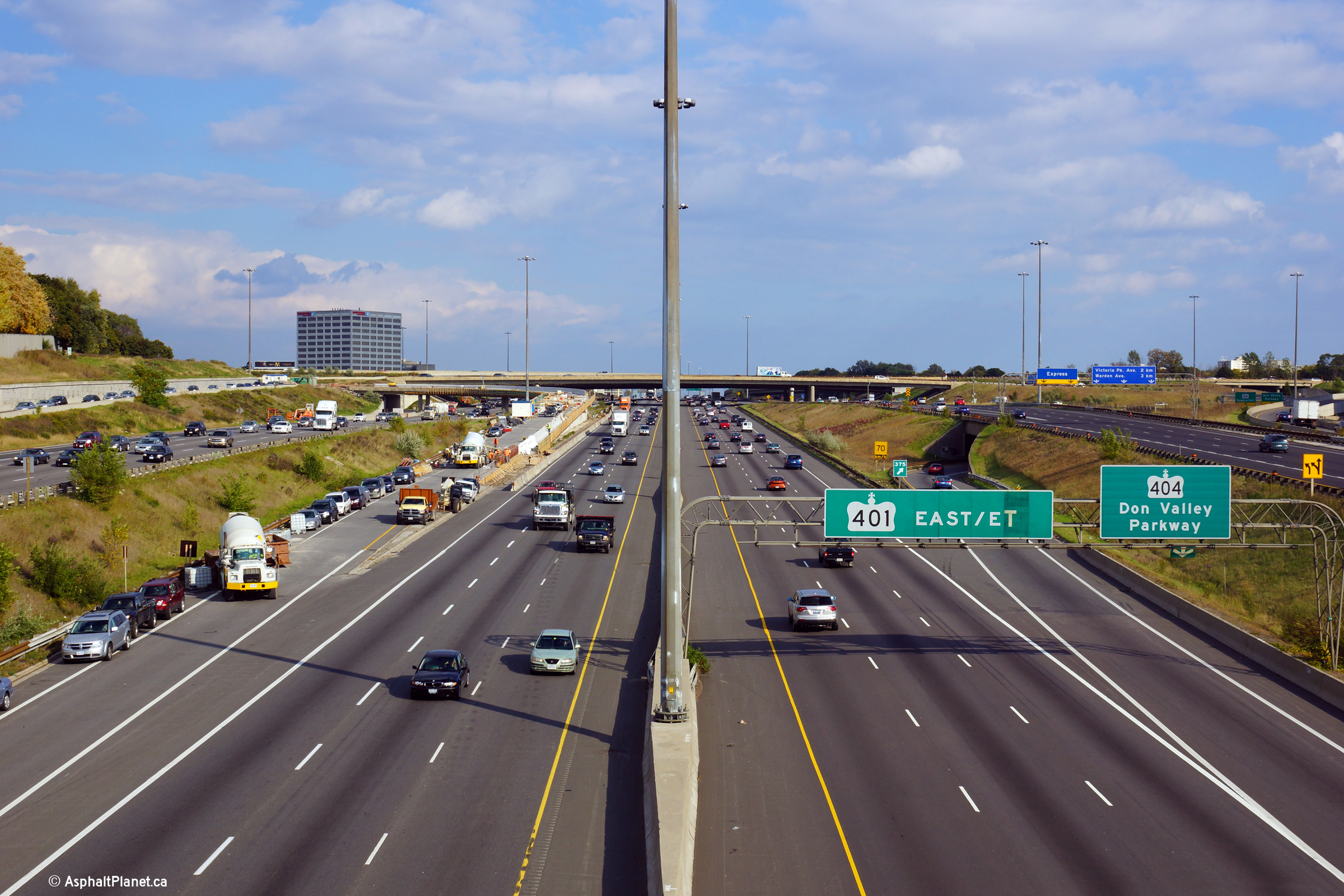

Easterly view from the Don Mills Road overpass towards the closed ramp from the southbound 404 to the westbound 401 Express.  This ramp re-opened late December, 2013. Centralized view from the Don Mills Road overpass.  A panel from the pull through "401 East" overhead signage had fallen off when this picture was taken, revealing the unilingual text behind. Westerly view from the Don Mills Road overpass. As a consequence of the ramp from the 404 to the westbound express lanes was that the collector lanes saw an increased volume of traffic and were often congested.




Contract #2013-2014 Highway 401 Eastbound Collector Rehabilitation - Dufferin Street to Avenue Road
Photos Taken September 8th, 2014:


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

(720x480)     (1440x960)     (2400x1600)

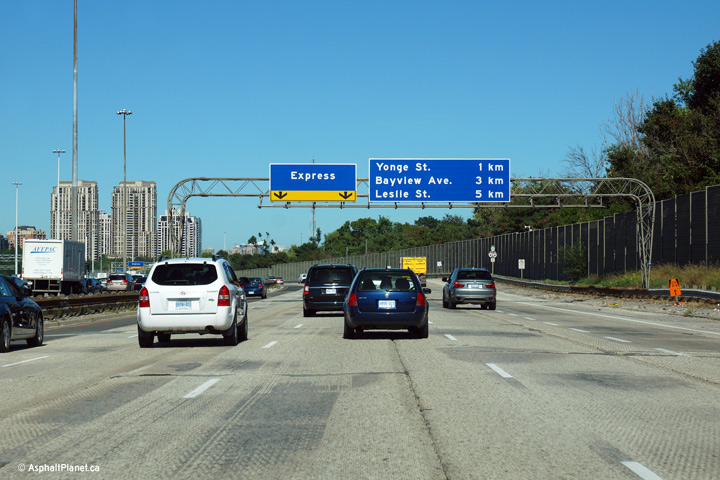

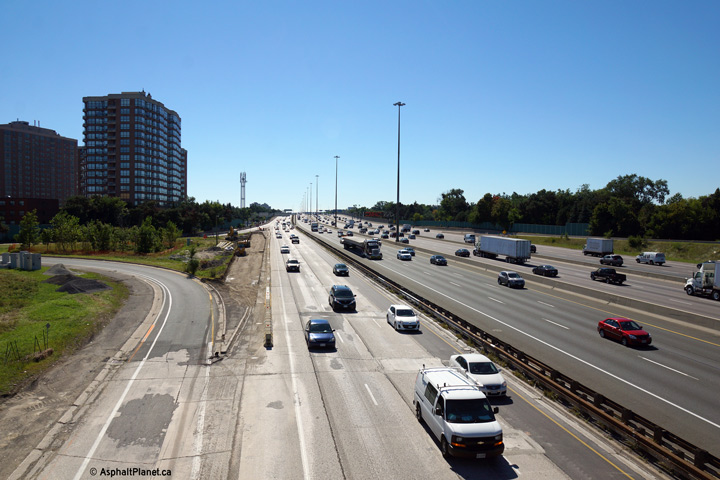

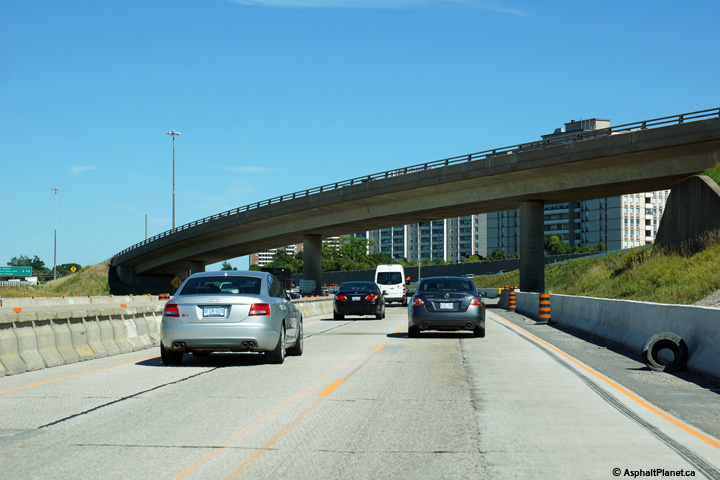

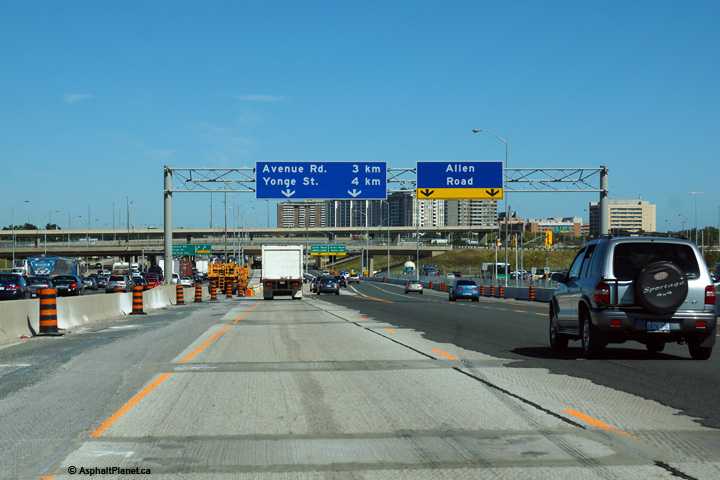

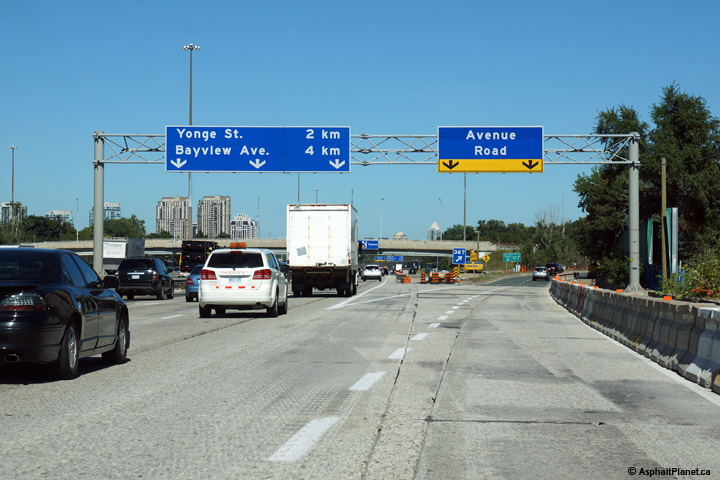

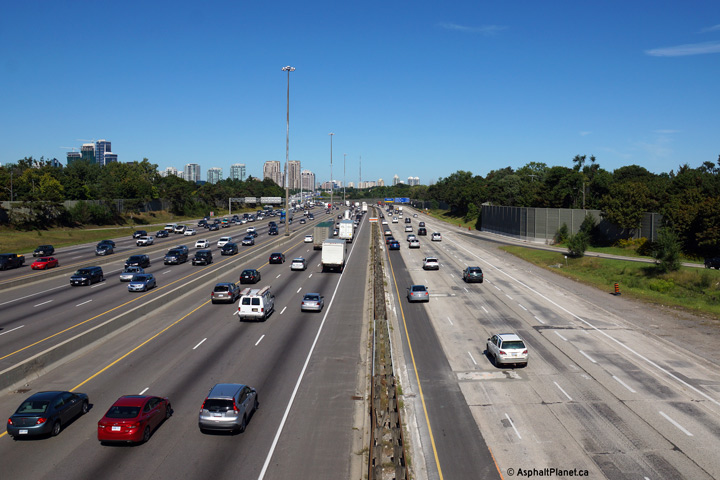

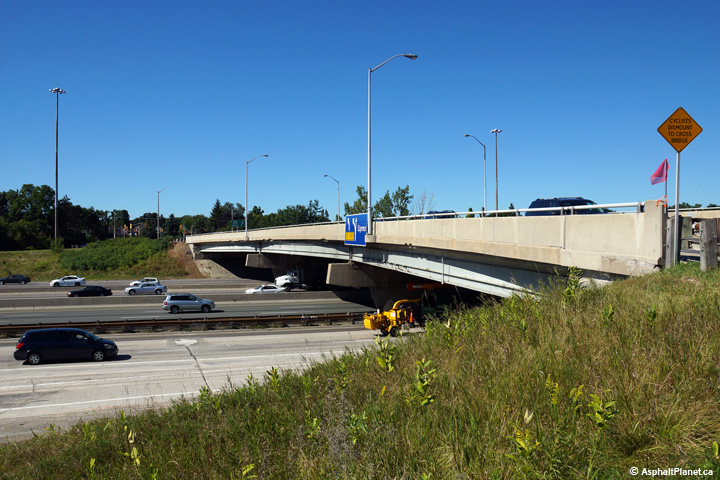

Eastbound collector lane signage at the Allen Road off-ramp.  As part of the highway reconstruction, a third eastbound lane is being pushed through the Allen Road interchange. Easterly view as the collector lanes pass beneath the ramp from Allen Road northbound to the eastbound express lanes of the 401.  Most of the highway's shoulders are being sacrificed to construct the third lane. A first generation COMPASS sign stands at the on-ramp from Bathurst Street.  This sign will be replaced with a modern full colour COMPASS sign during the reconstruction. Signage at the eastbound off-ramp to Avenue Road.


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

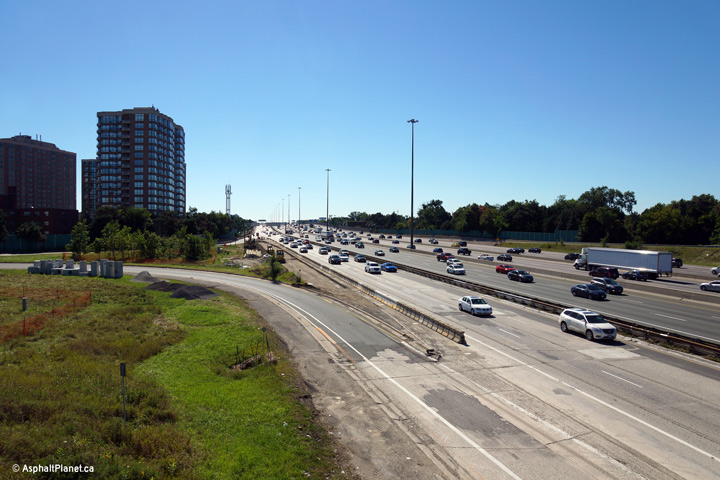

Westerly view from the Avenue Road overpass.  The clearing for the additional lane is visible between the off-ramp and on-ramp. A similar view looking westerly from the Avenue Road overpass. Looking towards the western side of the Avenue Road overpass.  The Avenue Road overpass is similar in design to the Keele Street overpass that was replaced in 2013, and is itself slated to be replaced within the next few years. Easterly view from the Avenue Road overpass overtop of the barrier that separates the eastbound express and collector lanes.


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)


(720x480)     (1440x960)     (2400x1600)

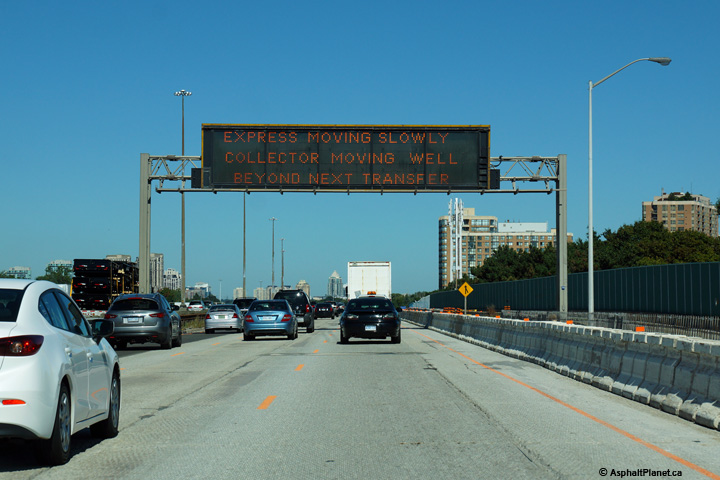

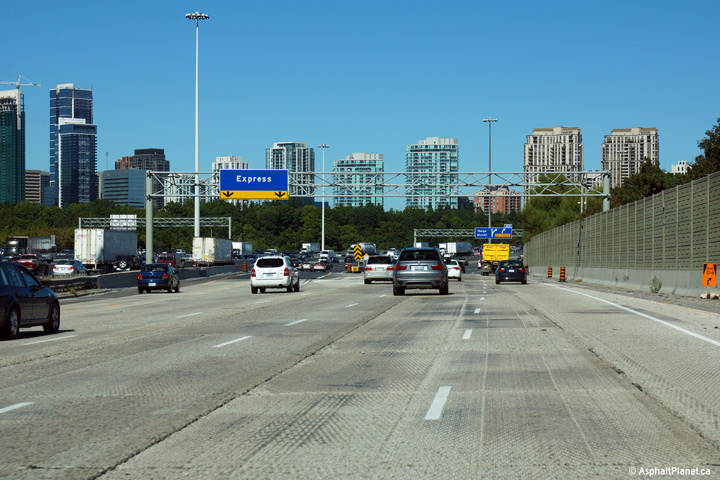

An OPP officer is parked on the outside shoulder of the highway just east of the Avenue Road overpass. The North York City Centre Skyline is visible from the Avenue Road overpass. Advanced signage for the Collector to Express transfer beyond Avenue Road. The construction contract ends just beyond the pictured transfer at the western touchdown of the Hogg's Hollow Bridge.
