King's Highway 410 - Images - Highway 410 Extension

Since 2003, the MTO has been extending Highway 410 northerly from its current northern terminus at Bovaird Drive to Highway 10 at Valleywood. Construction has progressed in three stages: the first included grading and structures between Sandalwood Parkway and Bovaird Drive, the second includes construction between Sandalwood Parkway and Mayfield Drive, while the third phase will see the extension completed between Mayfield and Highway 10. Click here for a PDF map with more details about Highway 410's construction phases. The new freeway should be open to traffic between Bovaird Drive and Mayfield Road by 2008.

Photos Taken May 11th, 2007:
Low-res High-res	Low-res High-res	Low-res High-res	Low-res High-res

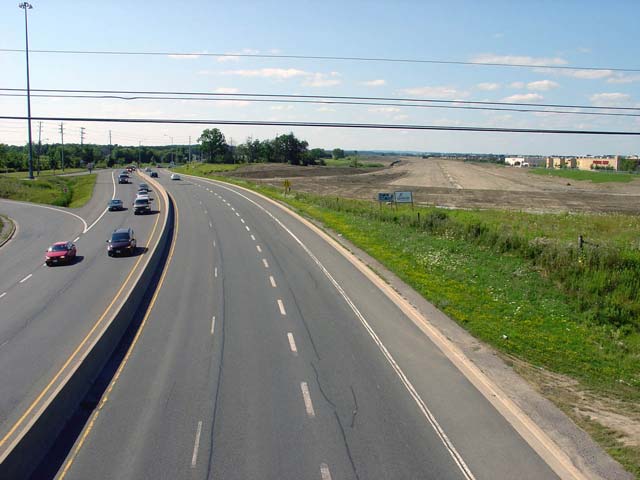

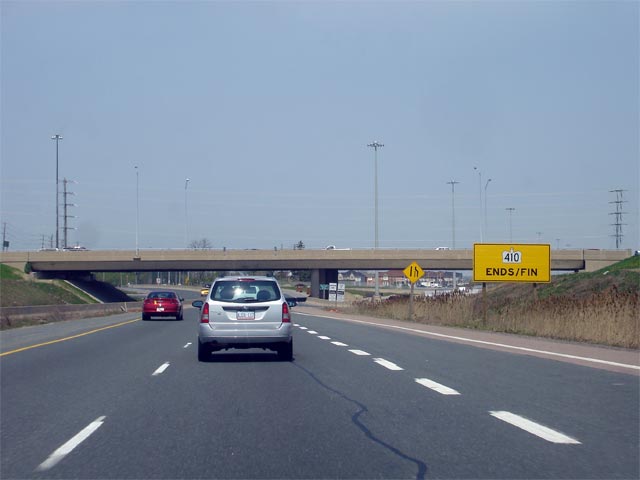

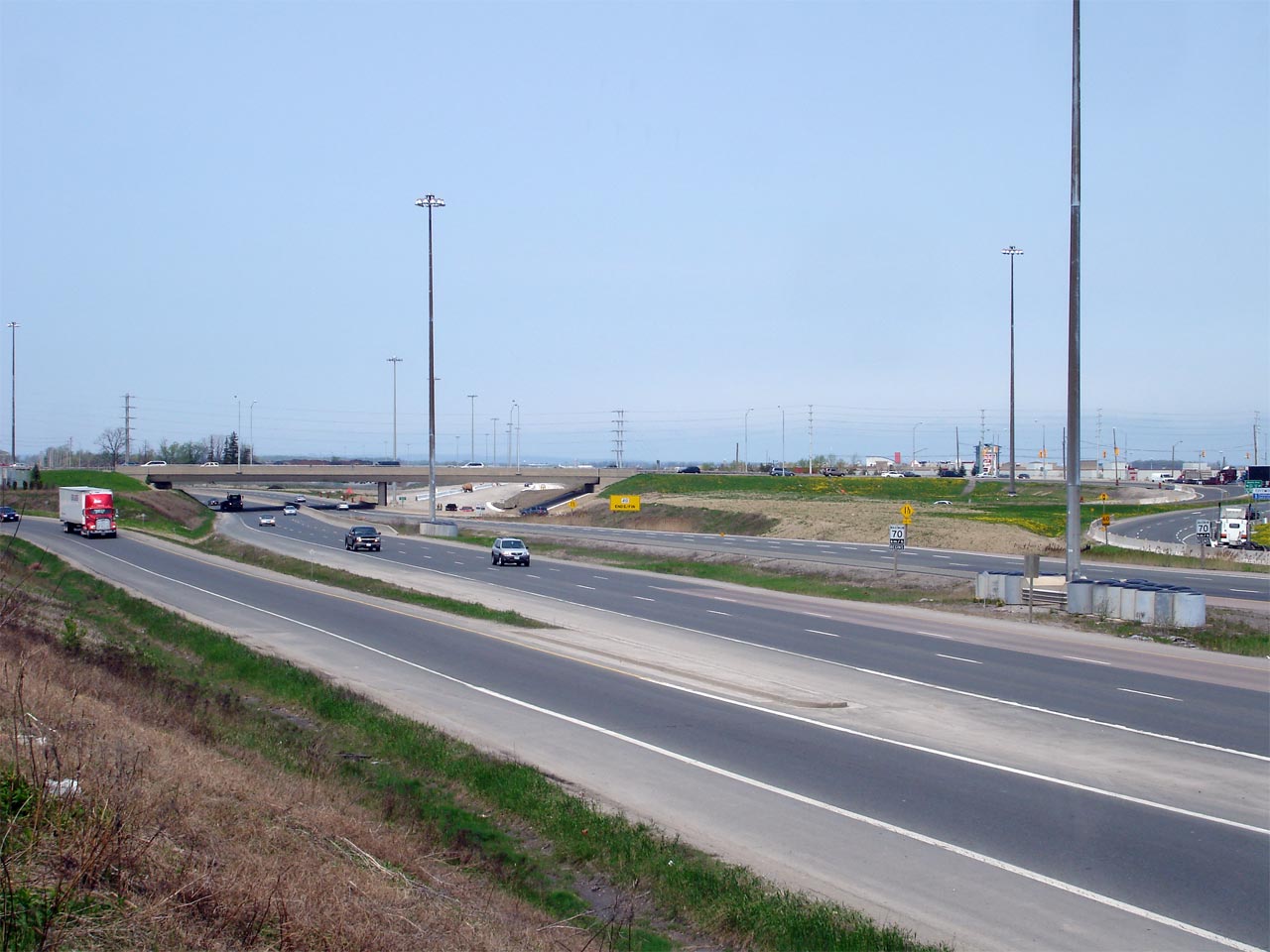

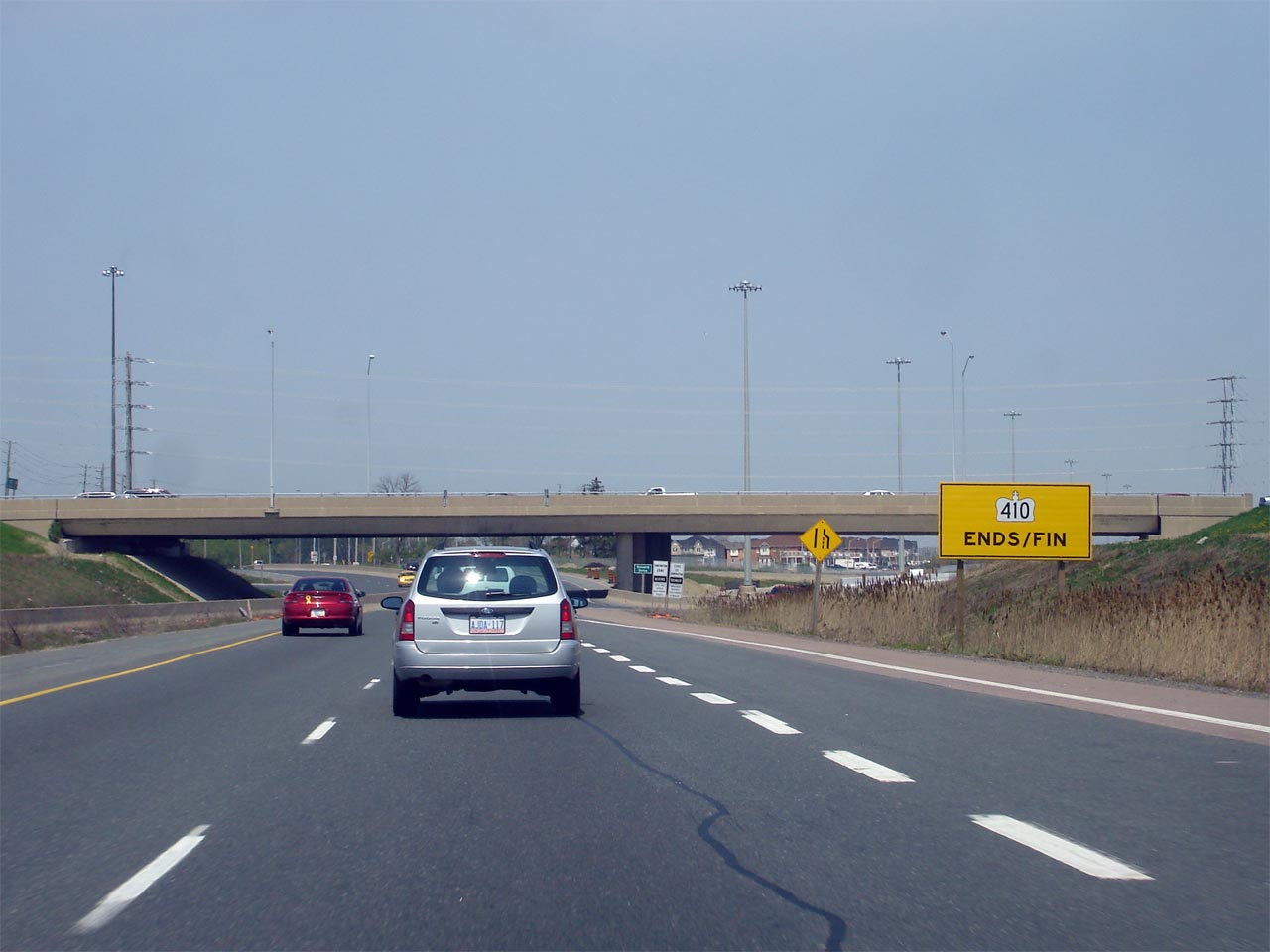

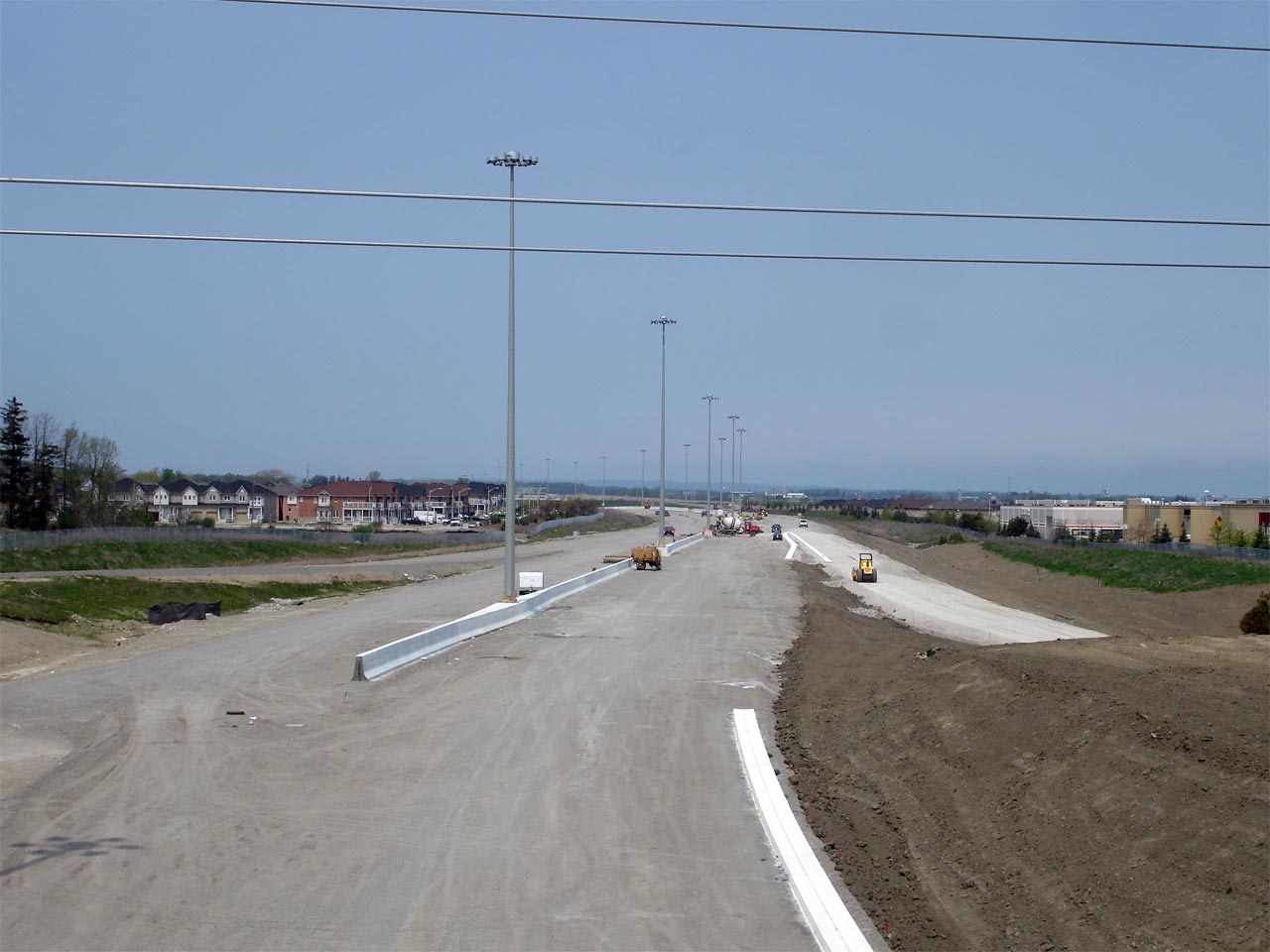

View looking northerly towards the current northern terminus of Highway 410 at the Bovaird Drive interchange	Sign denoting the northern terminus of Highway 410 at the Bovaird Drive interchange.	Looking northerly from Bovaird Drive towards the Highway 410 extension. Heart Lake Road continues at the left.	Another view looking northerly from the Bovaird Drive overpass
Low-res High-res	Low-res High-res	Low-res High-res	Low-res High-res

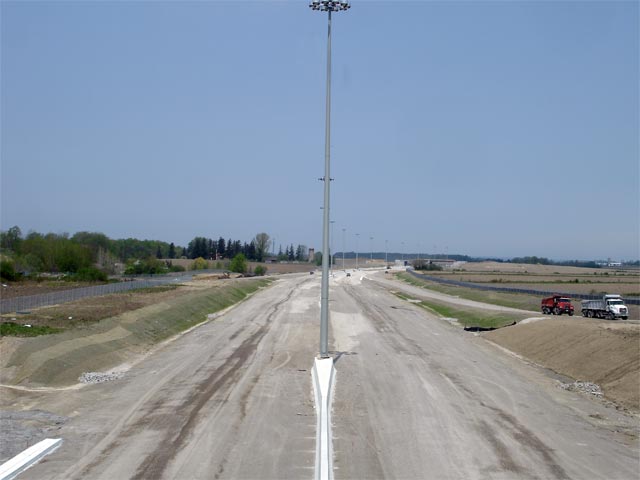

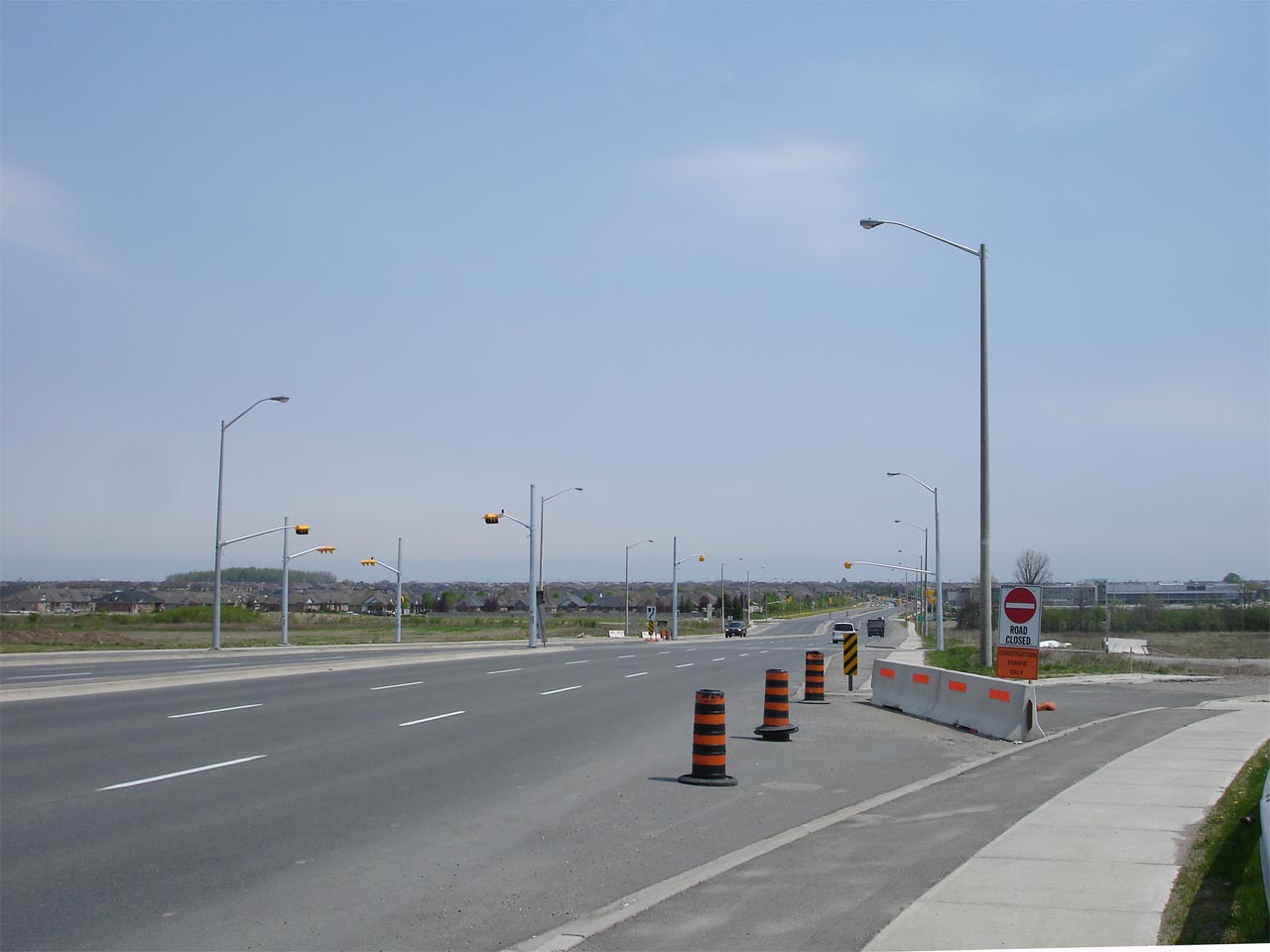

This view looks southerly along Highway 410 from the Sandalwood Parkway overpass	Looking easterly along Sandalwood Parkway towards the future northbound ramp terminal	View looking northerly along Highway 410 from the Sandalwood Parkway overpass	Another view looking northerly from the Sandalwood Parkway overpass. Notice the curb work that has been installed for the loop ramp.

Photos Taken August 28, 2007:
Low-res High-res	Low-res High-res		Low-res High-res

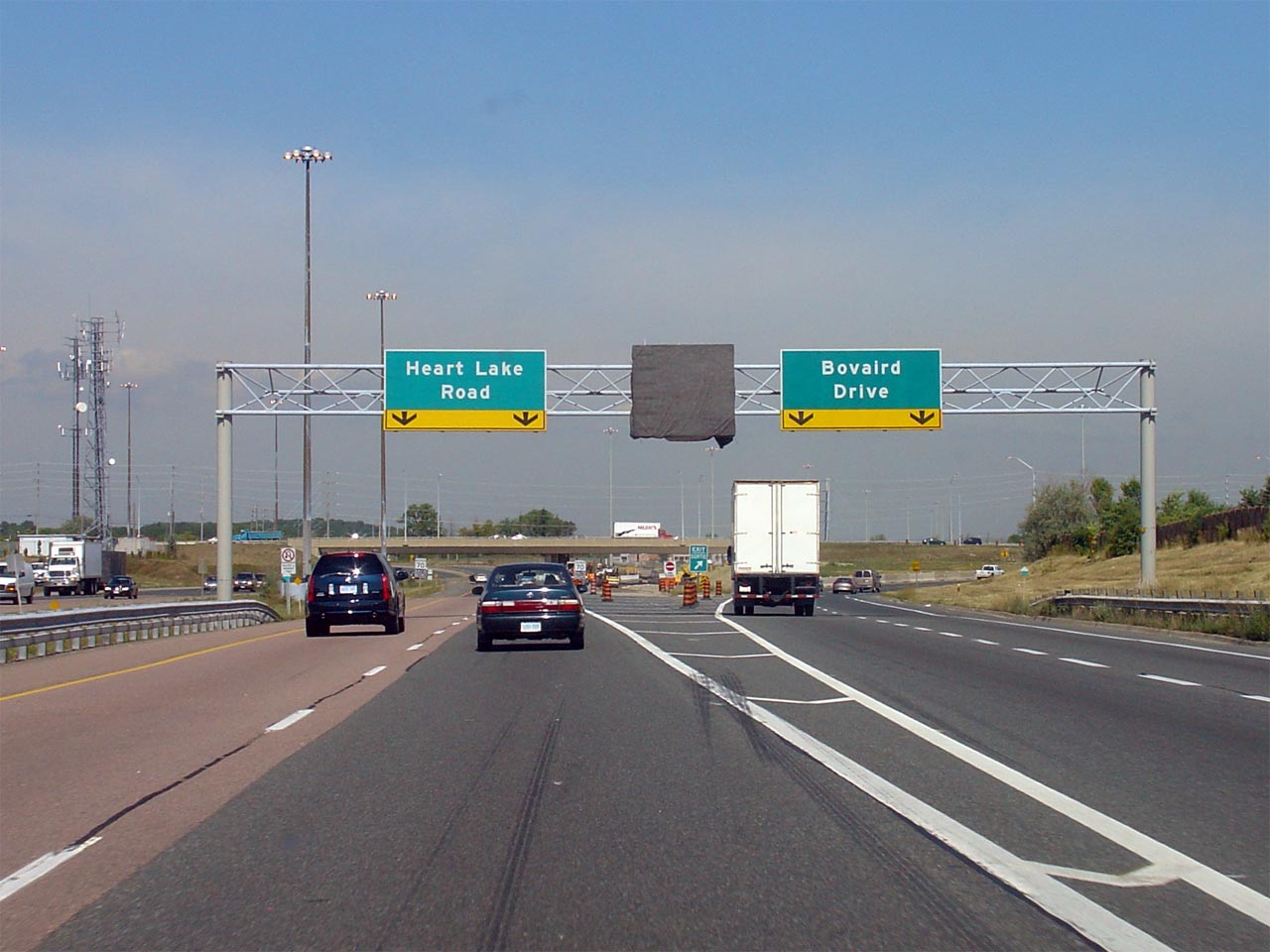

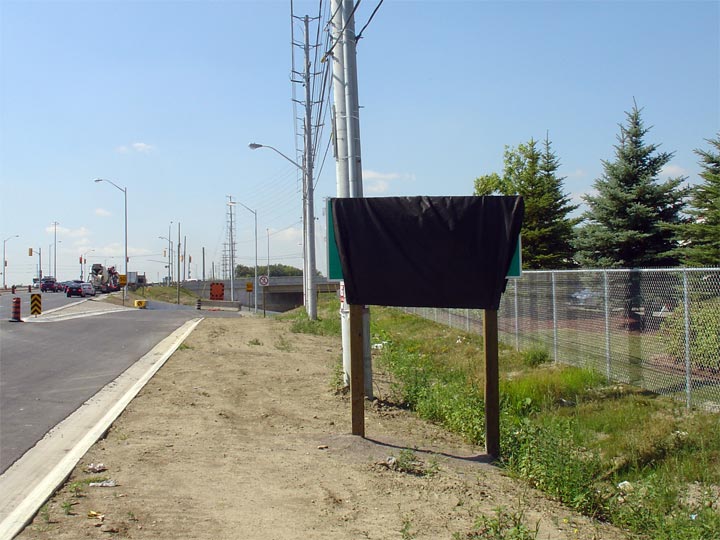

View looking northerly along Highway 410 approaching the Bovaird Drive interchange.	The third lane defaults off at Bovaird Drive instead of ending just after the ramp as it did before construction.	A covered up Highway 410 sign located westbound on Bovaird Drive.	The westbound to northbound ramp from Bovaird Drive passes under the Trinity Commons Shopping Mall entrance.
Low-res High-res	Low-res High-res	Low-res High-res	Low-res High-res

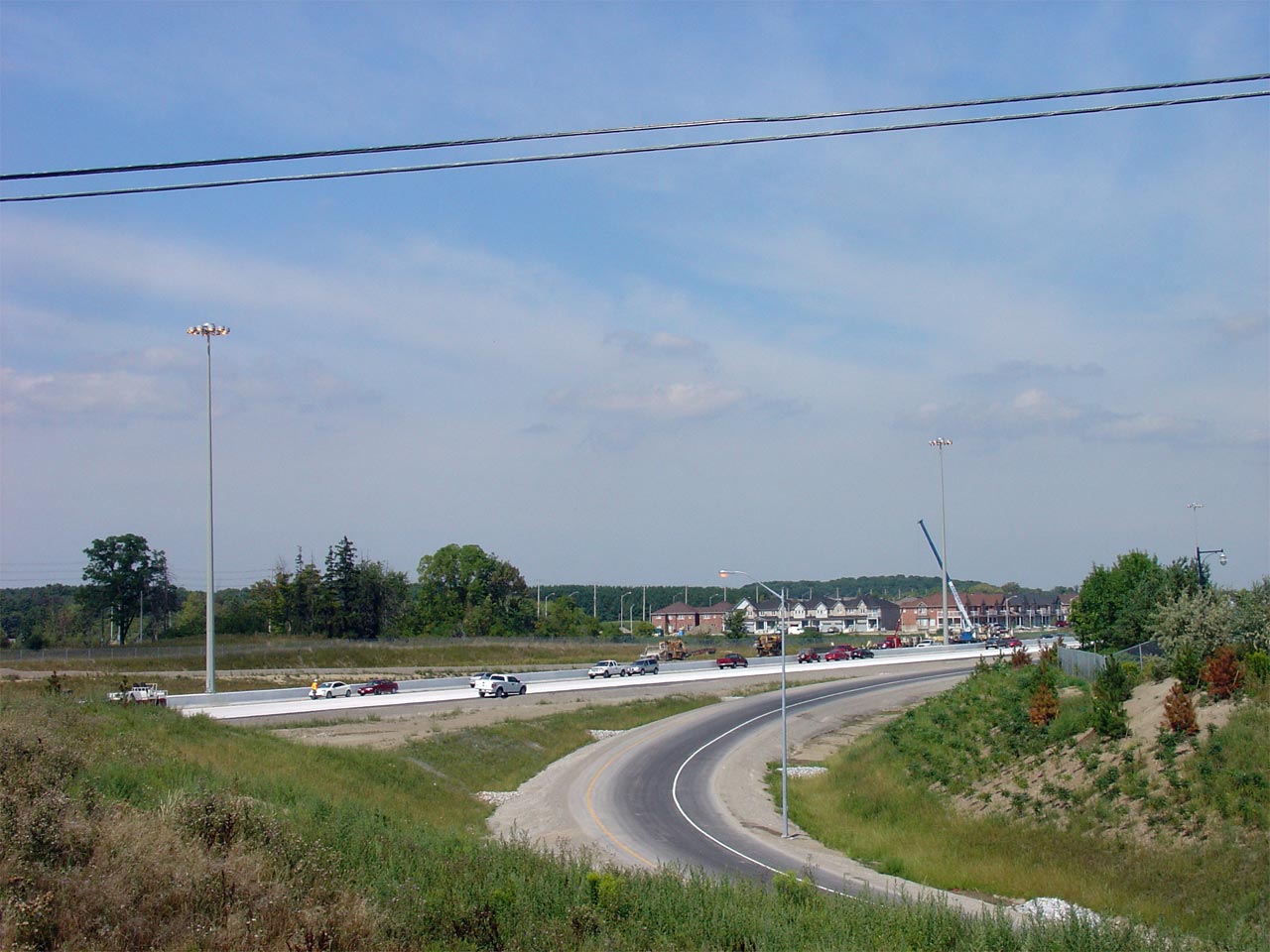

Paving operations are underway to link the northbound lanes of the 410 to the extension.	View looking northerly as the Westbound to Northbound ramp from Bovaird Drive joins Highway 410.	View looking northerly from Bovaird Drive. Note the transition from asphalt to concrete driving surface.	View looking north as Highway 410 departs from the Heart Lake Road alignment.
Low-res High-res	Low-res High-res	Low-res High-res	Low-res High-res

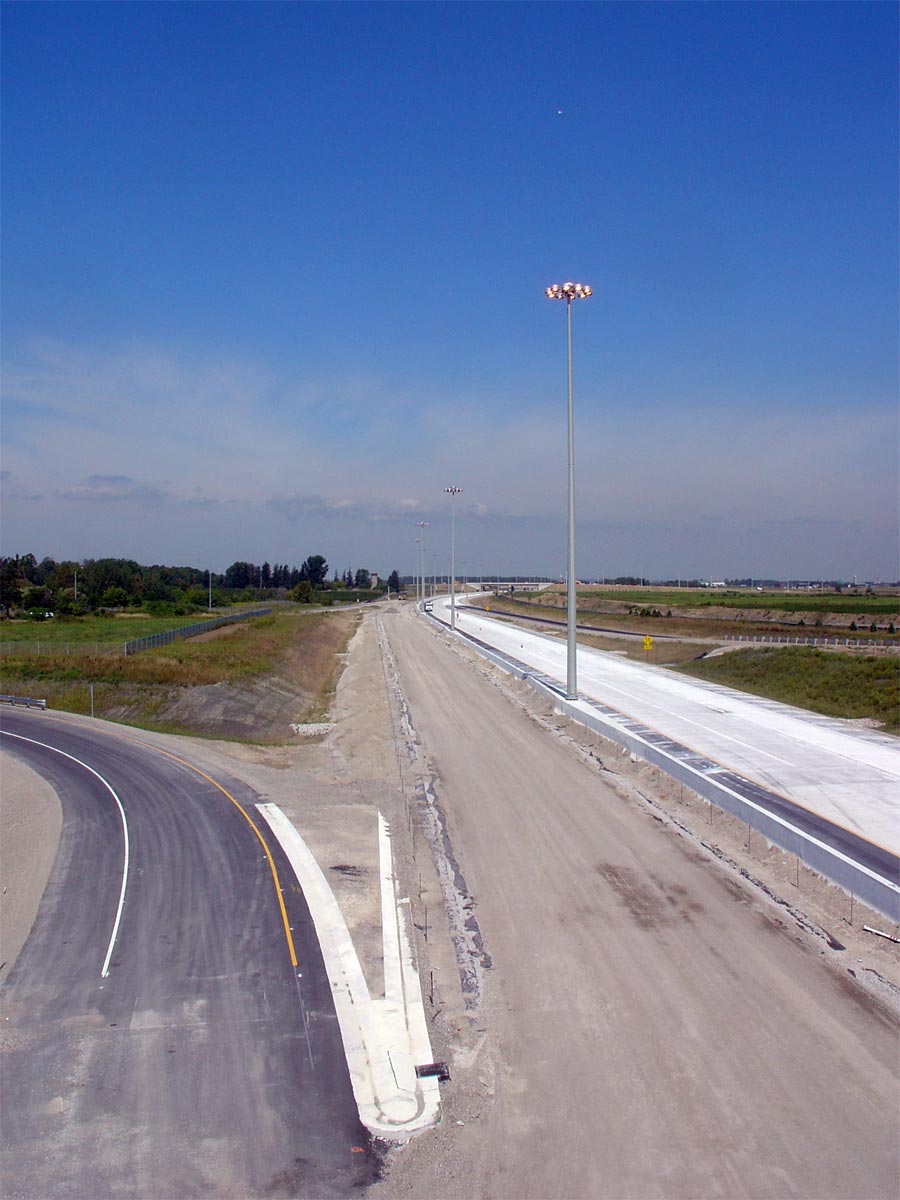

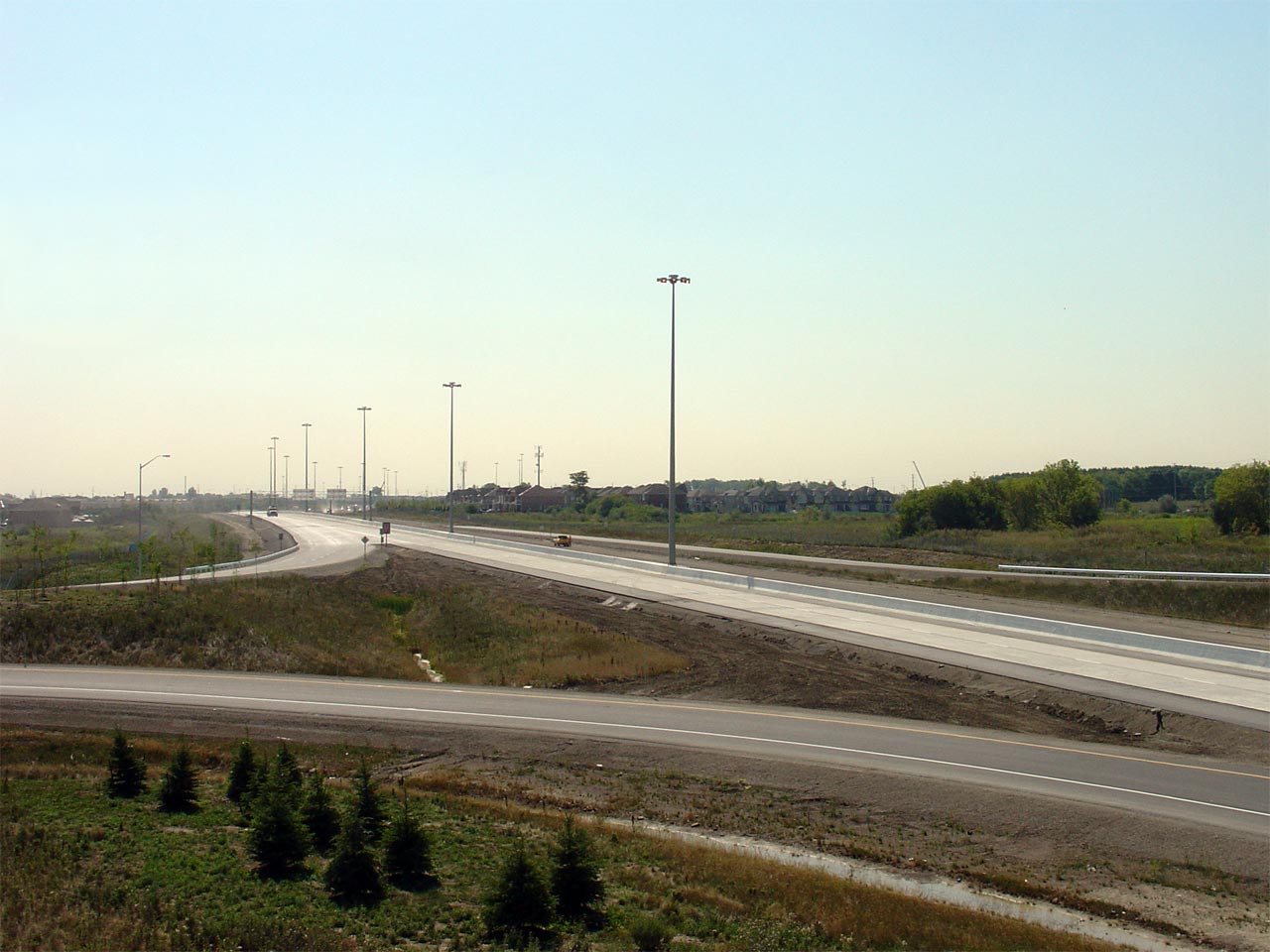

View looking south along the half completed Highway 410 alignment from the Sandalwood Parkway overpass.	Looking south towards the ramps in the southwest quadrant of the Sandalwood Parkway interchange	A ramp to nowhere. The ramps to and from Sandalwood Parkway are paved, though the southbound carriageway is still gravel surfaced.	Looking north towards the Sandalwood Parkway overpass along Highway 410.
Low-res High-res	Low-res High-res	Low-res High-res	Low-res High-res

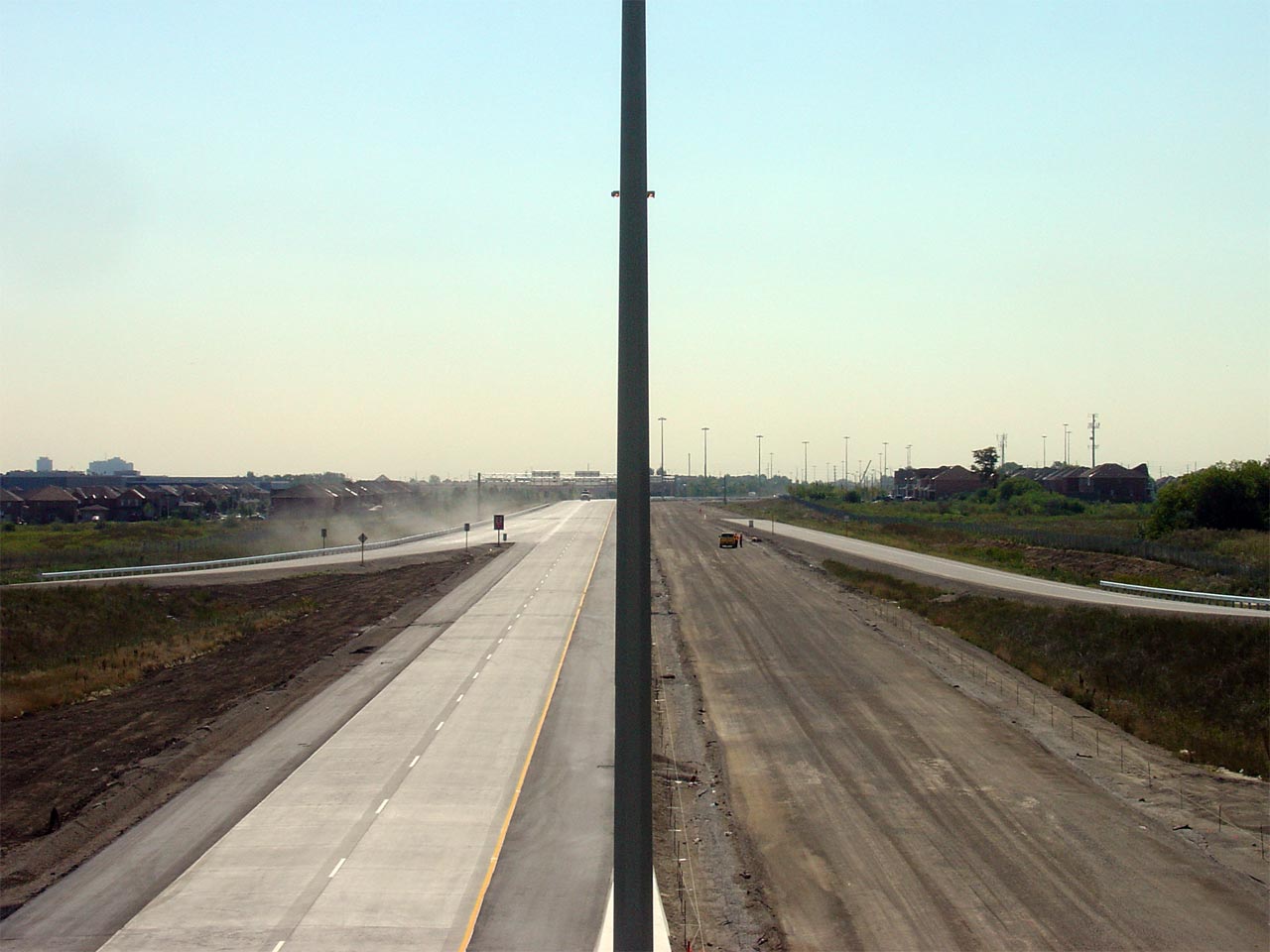

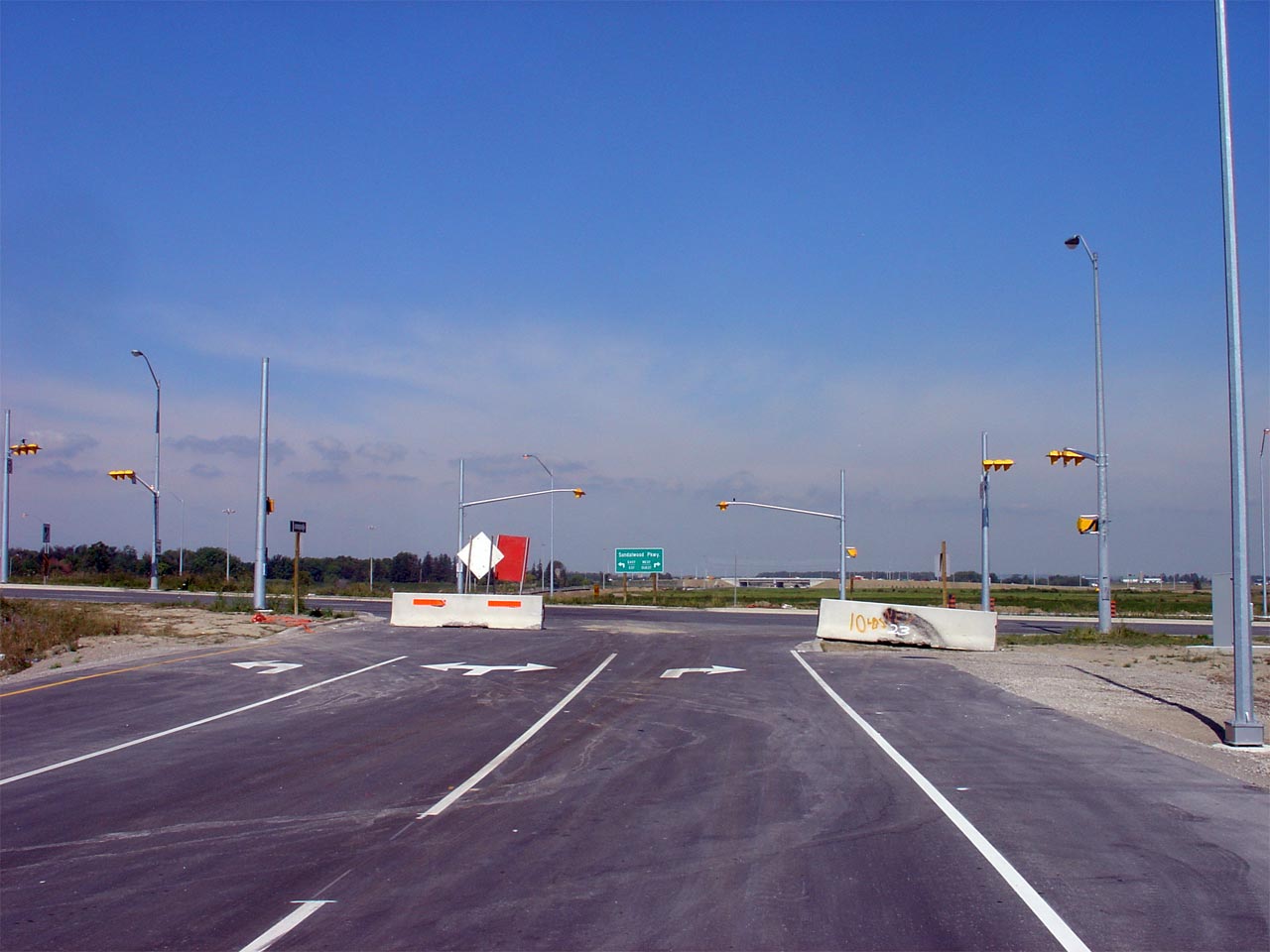

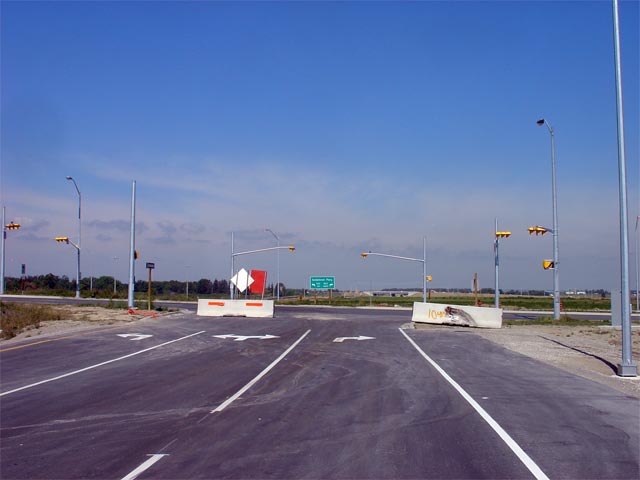

Looking northbound at the terminus of the Sandalwood Parkway off ramp.	Northbound view from the Sandalwood Parkway overpass. Reportedly, the northbound carriageway will open several weeks before its southbound counterpart.	Another view looking northerly along the 410 extension from Sandalwood Parkway.	This view looks southerly towards the northbound off-ramp for Highway 410 at Mayfield Drive. This will be the northern end of Highway 410 for approximately two years.
Low-res High-res	Low-res High-res	Low-res High-res

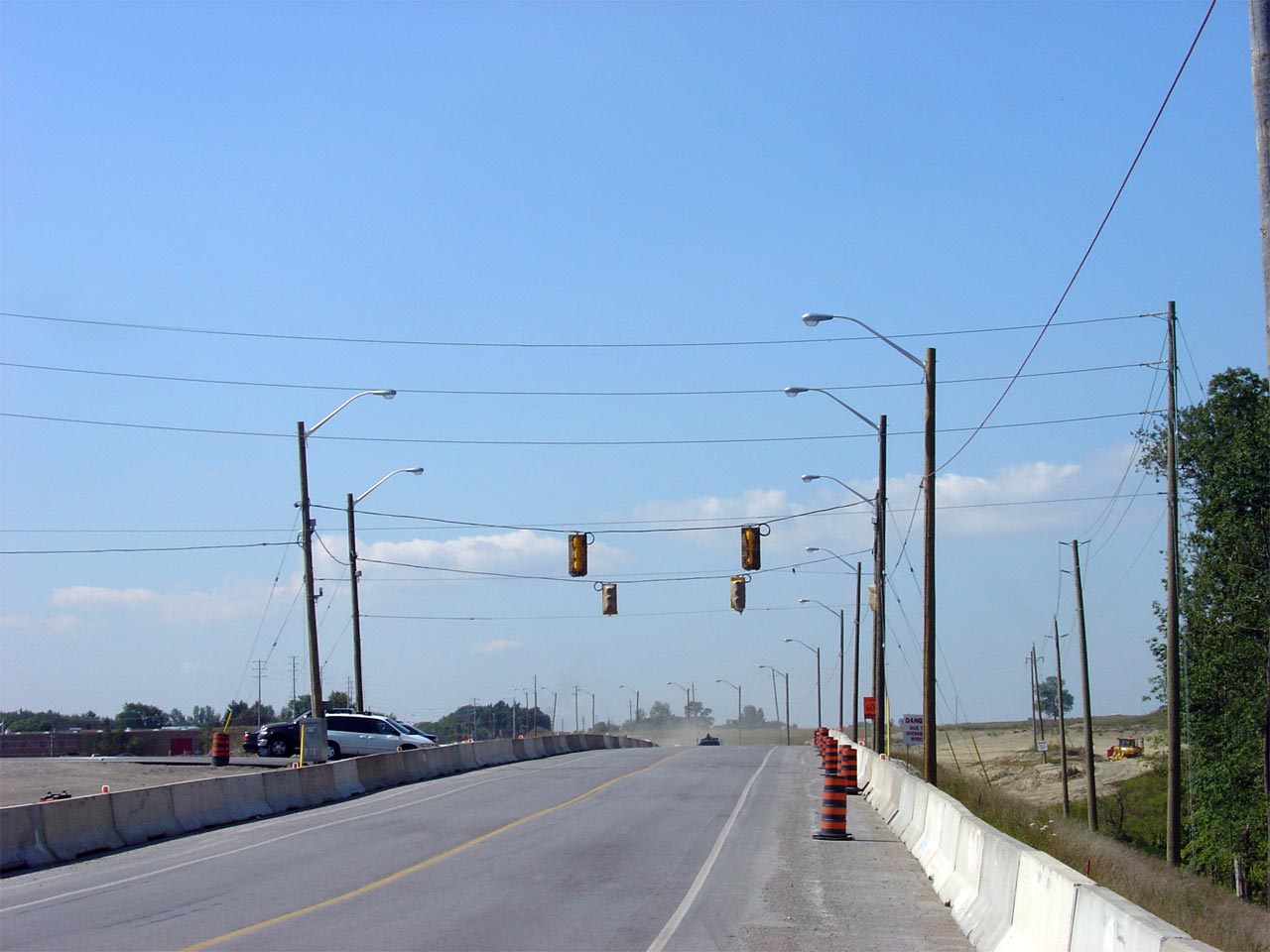

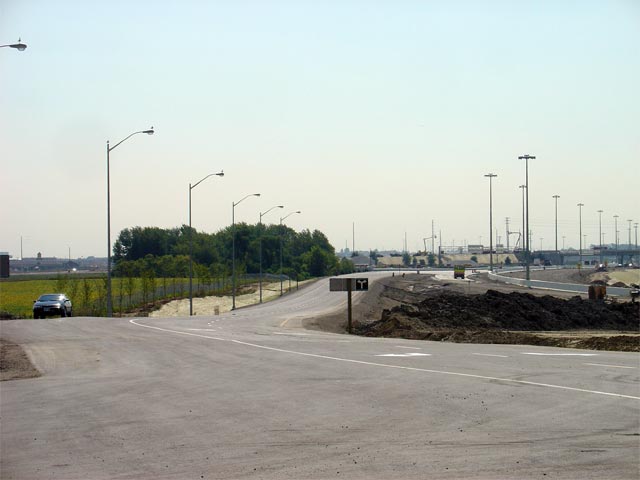

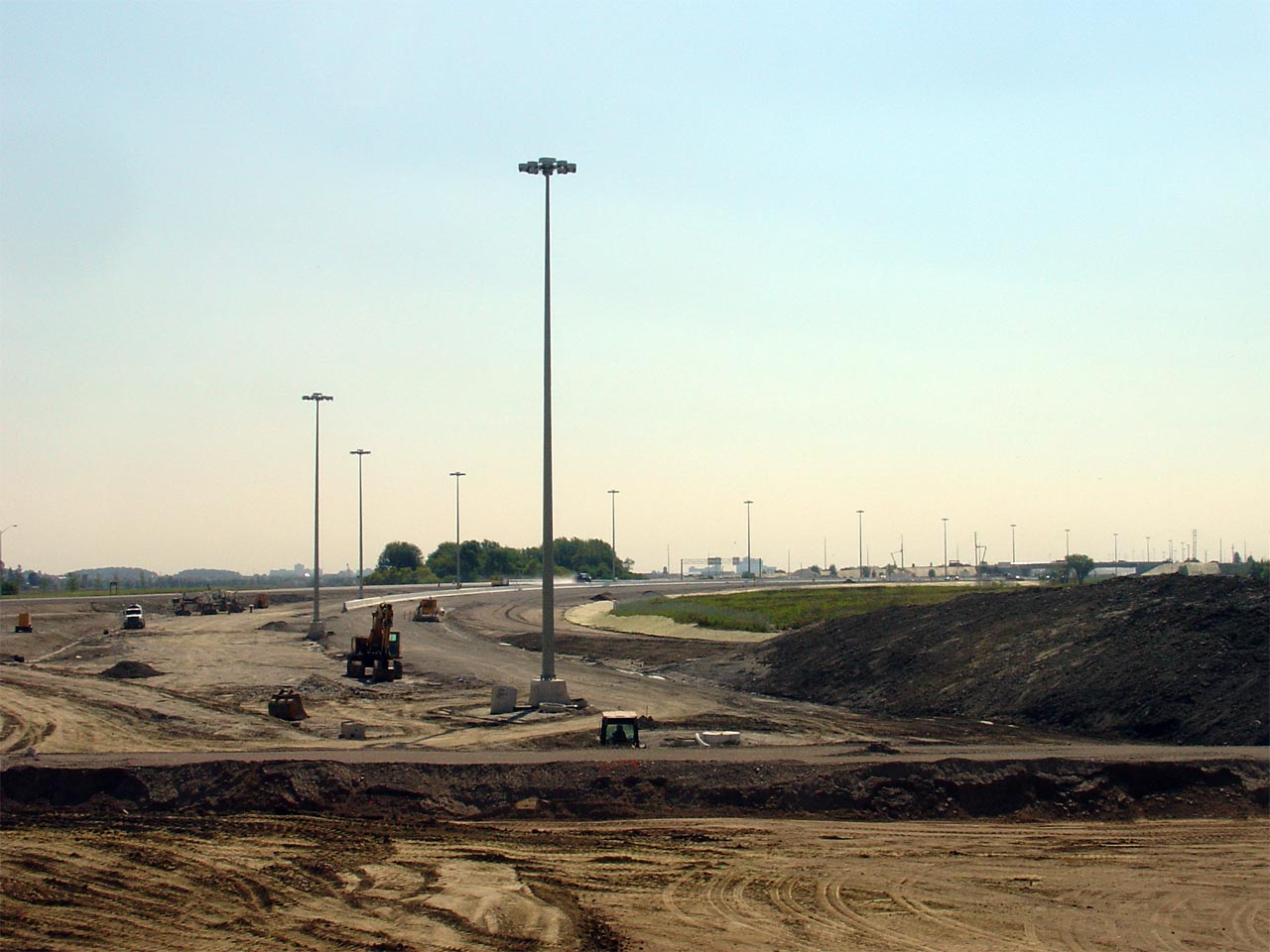

View looking south from Mayfield Drive. Highway 410 abruptly turns westerly at Mayfield Drive.	Advanced grading for Highway 410 north of Mayfield. The bulldozer is grading the northbound on-ramp from westbound Mayfield.	Temporary traffic signals have been installed along Mayfield Road	View looking west along Mayfield Drive at the future location of the Mayfield Drive overpass.

Photos Taken August 1st, 2004:

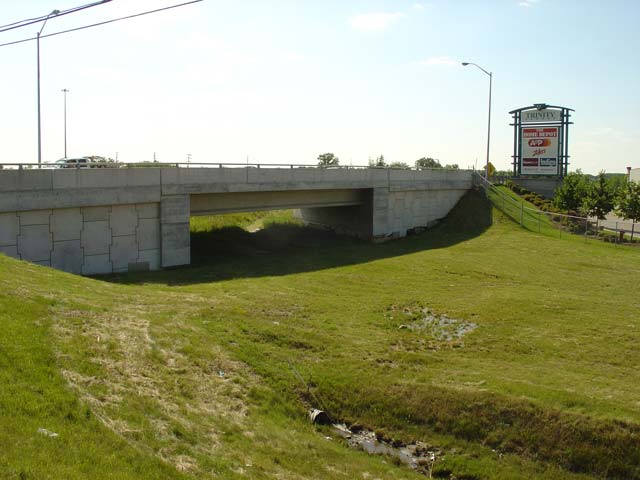

Eastern side of the structure that carries the Trinity Commons Mall entrance over the future ramp from Bovaird Drive to Highway 410 northbound	View looking at the future highway veering easterly from the current Heart Lake Road alignment	Graded alignment of Highway 410 taken from the Sandalwood Parkway overpass.	Looking northerly towards the Sandalwood Parkway overpass. This structure had been completed only a short time before this photo was taken.
